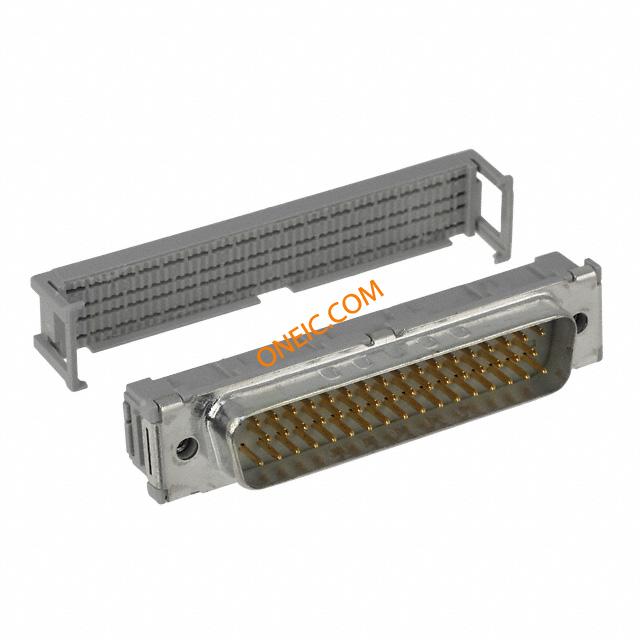

8250-7005
| Manufacturer | |
| Description | Conn D-Subminiature PL 50 POS 2.74mm IDT RA Cable Mount 50 Terminal 1 Port D-Sub Standard Connectors 50P CLOSD COVER PLUG 50 Position plug CONN DSUB PLUG 50POS IDC GOLD |
| Category |
Business
| Part # Aliases | 05111165746 80000901068 | Product Category | D-Sub Standard Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 20 |
Compliance
| RoHS | RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Gray | Pitch | 2.74 mm |
| Packaging | Bulk | Termination | IDT |
| Contact Type | Signal | Mounting Type | Cable Mount |
| Connector Type | Plug, Male Pins | Contact Finish | Gold |
| Flange Feature | Housing/Shell (4-40) | Number of Rows | 2 |
| Connector Style | D-Sub | Housing Material | Polyester, Glass Filled |
| Number of Positions | 50 | Shell Material, Finish | Steel, Nickel Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Shell Size, Connector Layout | 5 (DD, D) |
Product Info
| Type | D-Subminiature | Gender | PL |
| Features | Grounding Indents | ||
Environmental
| Operating Temperature | -55°C ~ 105°C | ||
