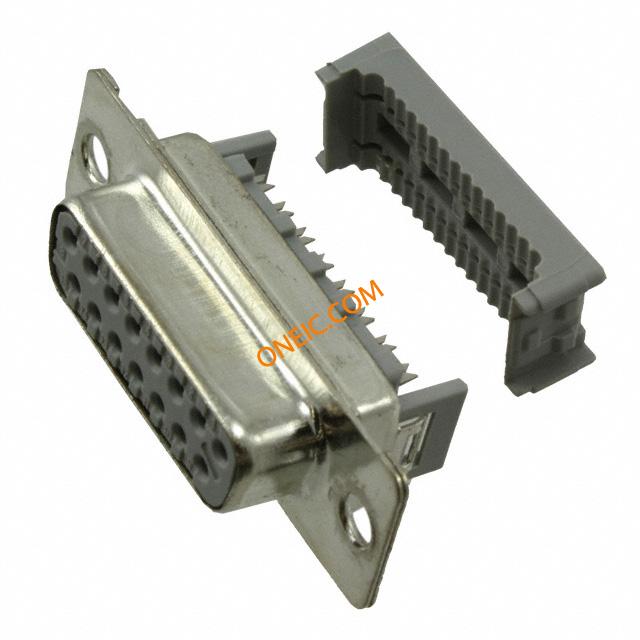

8315-6009
| Manufacturer | |
| Description | Conn D-Subminiature SKT 15 POS 2.74mm IDT RA Cable Mount 15 Terminal 1 Port D-Sub Standard Connectors 15POS IDT RA CAB MNT D-SUBMINI F 15P D-SUB SOCKET Socket Connector CONN D-SUB RCPT 15POS IDC GOLD +15 way IDC class 2 metal shell D socket SOCKET, DSUB, IDC, CRIMP, 15WAY IDC,DCABLESKT15WAY D-sub socket 15P, 8315-6009, 3M 3M 8300 系列 2.74mm 节距 15 路 IDC D-sub 连接器, 插座, 钢外壳 |
| Category |
Business
| MOQ | 100 | Unit Pack | 100 |
| Part # Aliases | 04671903136 DE610012739 | Product Category | D-Sub Standard Connectors |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85366990 |
| Leadfree Defin | RoHS-conform | Approval Agency | UL E68080 |
| RoHS Compliance | Yes | ||
Electrical
| Range deg/s | :3M - 8300 Series | Voltage Rating | 1000V |
| Current Rating (Max) | 1 A | ||
Mechanical
| Color | Gray | Depth | 12.4mm |
| Pitch | 2.74 mm | Length | 39.1mm |
| Weight | 0.075 | Packaging | Bulk |
| Cable Exit | NO | Insulation | Insulated |
| Shell Size | :DA | Wire Gauge | 28 TO 26 |
| Orientation | STRAIGHT | Shield Type | NO |
| Termination | IDT | Contact Type | FEMALE |
| Pitch - Post | 1.27mm | Mounting Type | Cable Mount |
| Shell Plating | Tin | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Style | Panel | Number of Rows | 2 |
| Shell Material | Steel | Connector Style | D-Sub |
| Material - Body | :Steel | Contact Material | Copper Alloy |
| Housing Material | Polyester, Glass Filled | Termination Style | Crimp |
| Number of Contacts | 15 | Contact Termination | :IDC / IDT |
| Insulation Material | Polyester, Glass Filled | Number of Positions | 15 |
| Plating - Thickness | 1.0 | Shell Material, Finish | Steel, Tin Plated |
| Contact Finish Thickness | 30µin (0.76µm) | Contact Material - Plating | GOLD |
| Shell Size, Connector Layout | 2 (DA, A) | ||
Product Info
| Type | D-Subminiature | Gender | SKT |
| Series | 8300 | Features | Feed Through |
| Matchcode | 83156009 | Standard Leadtime | 12 weeks |
Environmental
| Operating Temperature | - 55 C to + 105 C | ||
