点击放大查看

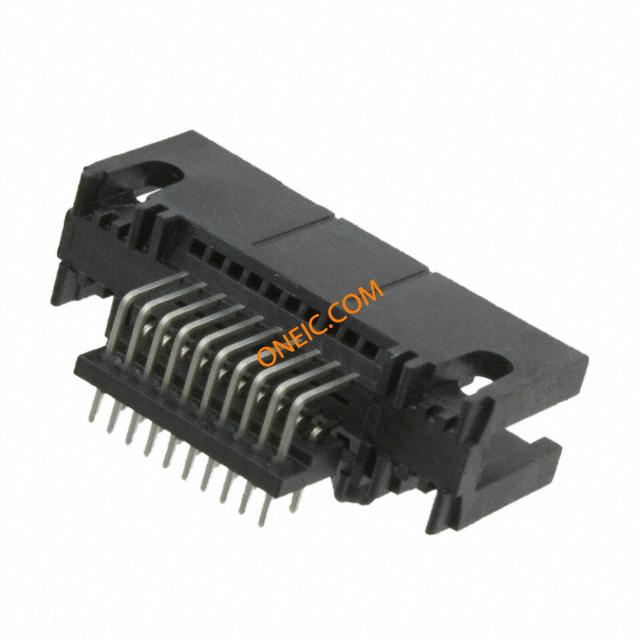

81020-500203-RB
| Manufacturer | |
| Description | Conn Ejector Header HDR 20 POS 1.27mm Solder RA Thru-Hole .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN HEADER 20POS R/A THRU HOLE Headers & Wire Housings 20POS R/A HEADER |
| Category |
Business
| Part # Aliases | 80000901423 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Current Rating (Max) | 500 mA | ||
Mechanical
| Color | Black | Pitch | 1.27 mm |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Contact Material | Copper Alloy | Termination Style | Through Hole |
| Number of Contacts | 20 | Number of Positions | 20 |
| Contact Length - Mating | 0.140" (3.56mm) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Ejector Header | Gender | HDR |
| Series | 810 | Features | Board Lock |
| Product Type | Headers | Number of Positions Loaded | All |
Documents & Media
Similar Parts
3505-28
3M Electronic Solutions Division
Headers & Wire Housings LONG LATCH/EJECTOR .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN LONG EJECTOR LATCH FOR MHDR
82020-6006RB
3m interconnect solutions
Conn IDC Connector SKT 20 POS 1.27mm IDT RA Cable Mount CONN SOCKET 20POS W/STRAIN REF SOCKET, IDC, W/STRAIN, 20WAY
3505-28B
3m interconnect solutions
Connector Accessories Long Ejector Latch Liquid Cristal Polymer Black .050" Ã .100" Latch/Ejector, PTH & SMT Straight, PTH Right Angle CONN LONG EJECTOR LATCH FOR MHDR Long ejector latch for connectors Headers & Wire Housings LONG EJECTOR LATCH 1PIECE BLACK LATCH, LONG MINIIDCHEADEJECTORS 3M 弹射闩锁, 使用于810 系列
82020-6006
3m interconnect solutions
Conn IDC Connector SKT 20 POS 1.27mm IDT RA Cable Mount Headers & Wire Housings 20P TRIPLRZD SOCKET WITH STRAIN RELIEF .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONNECTOR RECEPT W/STRAIN 20POS Socket,WireMount;Tripolarized;20;CopperAlloy;0.5A;0.025in.;30AWG
82020-6000
3M Electronic Solutions Division
Headers & Wire Housings 20P TRIPLRZD SOCKET NO STRAIN RELIEF .050" Ã .100" Tripolarized Wiremount for .025" Pitch Cable CONN SOCKET 20POS W/O STRAIN Conn IDC Connector SKT 20 POS 1.27mm IDT RA Cable Mount

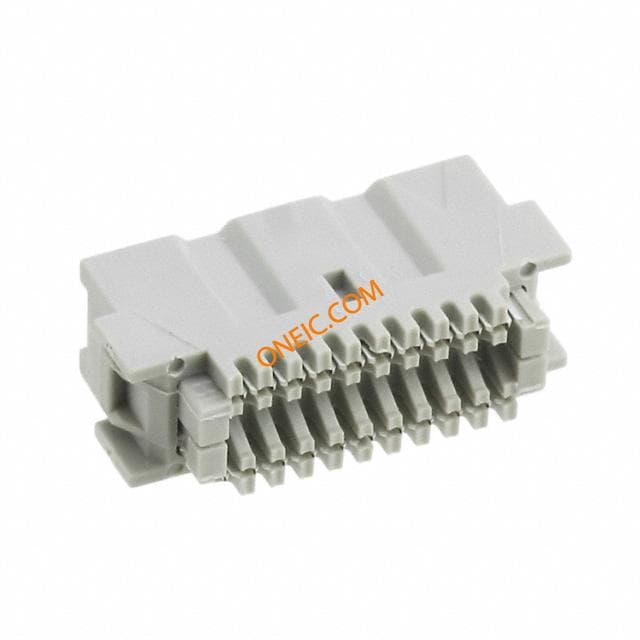

82020-6000-RB
