4614-6001
| Manufacturer | |
| Description | Conn Ejector Header PL 14 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Connector For .050" Pitch Cable PLUG CONNECTOR 14 POS W/O FLANGE 3M 4600 Series 2.54mm Pitch 14 Way 2 Row Right Angle PCB Header, IDT Termination, 1A Headers & Wire Housings 14P OPEN END PLUG IDC SHROUDED HEADER Conn;Rect;Plug;Wiremount;0.100in;for0.050inCable;4600Ser. Pin strip DIN 41651 14P, 4614-6001, 3M 3M 4600 系列 2.54mm节距 14路 (2排) 直角 IDC 连接器, IDT端接, 1A , 电缆安装 |
| Category |
Business
| Part # Aliases | 05400735673 80610170567 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | RoHS Compliance | Yes |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage - Test | 1 | Number of Poles | 14 |
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Gray | Depth | 8.4 mm |
| Pitch | 2.54 mm | Height | 13.34 mm |
| Weight | 1.600 lbs | Packaging | Bulk |
| Wire Type | Discrete or Ribbon Cable | Cable Type | Discrete or Ribbon Cable |
| Wire Gauge | 26-28 AWG, Stranded or Solid | Orientation | 直角 |
| Row Spacing | 0.100" (2.54mm) | Termination | IDT |
| Contact Form | Male Pin | Contact Type | Male Pin |
| Lead Spacing | 0.100" (2.54mm) | Housing Color | Gray |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug |
| Contact Finish | Gold Over Nickel | Mounting Style | Wire |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) | Length - Overall | 27.9 mm |
| Termination Rows | IDT | Cable Termination | IDC |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 14 |
| Number of Positions | 14 | 1st Connector Gender | Male |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Ejector Header | Gender | PL |
| Series | 4600 | Features | Feed Through |
| Main Purpose | Feed Through | Product Type | Headers |
| Amplifier Type | 27.9 | Output Configuration | Free Hanging (In-Line) |
| Application Specifics | Wire-to-Wire | ||
Environmental
| Operating Temperature | -55C to 105C | ||
Documents & Media
Similar Parts
3385-6600
3m interconnect solutions
Conn IDC Connector SKT 14 POS 2.54mm IDT RA Cable Mount 14P WIREMOUNT SOCKET .100" Ã .100" Wiremount for .050" Pitch Cable SOCK CONN 14 CONT OPEN W/POL GLD 14 way IDC bump polarised socket Headers & Wire Housings 14P IDC SOCKET SOCKET, IDC, 14WAY SOCKETCONNECTOR;14CONTACTS Multipole socket DIN 41651 14P, 3385-6600, 3M 3M 2行 14路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装
3385-6014
3m interconnect solutions

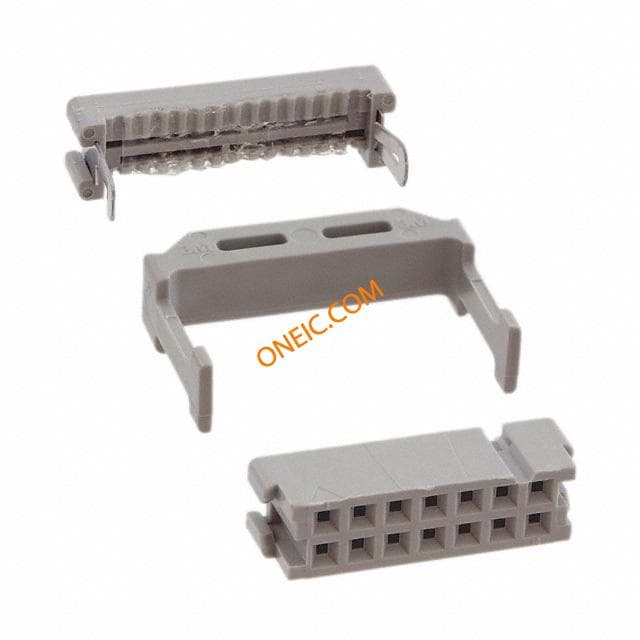

Conn IDC Connector SKT 14 POS 2.54mm IDT RA Cable Mount .100" Ã .100" Wiremount for .050" Pitch Cable CONN SOCKET 14POS OPEN END GOLD Headers & Wire Housings 14P IDC SOCKET WIRE-TO-BOARD CONNECTOR, RECEPTACLE, 14 POS, 2 ROW
