3385-6600
| Manufacturer | |
| Description | Conn IDC Connector SKT 14 POS 2.54mm IDT RA Cable Mount 14P WIREMOUNT SOCKET .100" Ã .100" Wiremount for .050" Pitch Cable SOCK CONN 14 CONT OPEN W/POL GLD 14 way IDC bump polarised socket Headers & Wire Housings 14P IDC SOCKET SOCKET, IDC, 14WAY SOCKETCONNECTOR;14CONTACTS Multipole socket DIN 41651 14P, 3385-6600, 3M 3M 2行 14路 2.54mm节距 直角 母 IDC 连接器 , 电缆安装 |
| Category |
Business
| MOQ | 100 | Unit Pack | 100 |
| Part # Aliases | 05400733659 80610121131 | Product Category | Headers & Wire Housings |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Leadfree Defin | RoHS-conform | Approval Agency | UL E68080 |
| RoHS Compliance | Yes | Material Flammability Rating | :UL94V-0 |
Electrical
| Range deg/s | :3M - 3000 Series | Voltage Rating | 1000V |
| Voltage - Working | :350V | Contact Resistance | :20mohm |
| Current Rating (Max) | 1A | Insulation Resistance | :1000Mohm |
| Contact Rating (Current) | :1A | ||
Mechanical
| Color | Gray | Depth | 7.6 mm |
| Pitch | 2.54 mm | Height | 10.4 mm |
| Weight | 1 lb | Material | :Glass Filled Polyester (PBT) |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | NO | Wire Gauge | 28 TO 26 |
| Orientation | STRAIGHT | Row Spacing | 0.100" (2.54mm) |
| Termination | IDT | Contact Type | FEMALE |
| Lead Spacing | :2.54mm | Pitch - Post | 2.54mm |
| Housing Color | Gray | Mounting Type | Free Hanging (In-Line) |
| Angle of Throw | Straight | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Mounting Style | Cable |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | IDC | Length - Overall | 22.4 mm |
| Primary Material | Industrial | Cable Termination | IDC |
| Pin Hole Diameter | 0.1" | Termination Style | IDC |
| 1st Contact Gender | Socket (Female) | Color - Connectors | :Grey |
| Number of Contacts | 14 | Contact Termination | :IDC / IDT |
| Dielectric Material | PBT | Number of Positions | 14 |
| Maximum Pressure (PSI) | :1.6mm | Mounting Hole Diameter | :0.89mm |
| Contact Finish Thickness | 30µin (0.76µm) | Contact Material - Plating | GOLD |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Type | IDC Connector | Gender | SKT |
| Series | 3000 | Features | Feed Through, Polarizing Key |
| Polarity | :Bump | Matchcode | 33856600 |
| CAD Drawing | 3D CAD Model | Manufacturer | 3000Series |
| Product Type | Receptacles / Sockets - Housings | Standard Leadtime | 5 weeks |
| Other Specifications | NO | ||
Environmental
| Mating Cycles | 1 | Operating Temperature | -55 TO 105°C |
Documents & Media
Similar Parts
4614-7300
3M Electronic Solutions Division
Headers & Wire Housings 14 CON CLSD END W/MNT FLNG .100" Ã .100" Connector For .050" Pitch Cable CONN PLUG 14POS W/FLANGE
3314-2002
3M Electronic Solutions Division
Headers & Wire Housings 3 WALL HDR 14PIN STR SOLDRTL F.062BRD .100" Ã .100" Three-Wall Latch/Ejector, Straight and Right Angle CONN HEADER 14POS STR NO LATCH
3314-1003
3m interconnect solutions
Conn Ejector Header HDR 14 POS 2.54mm Solder RA Thru-Hole CONN HEADER 14POS R/A NO LATCH

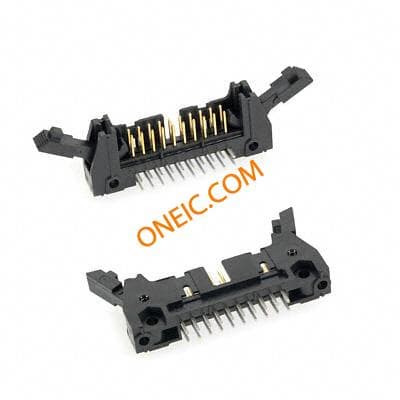

N3314-6502RB
