点击放大查看
158208-0120
| Manufacturer | |
| Description | Conn IDC Connector SKT 8 POS 2mm IDT RA Cable Mount Sword CABLE RIBBON SKT 2MM 8POS GOLD IDC Socket 2mm 8 way conn centre bump Headers & Wire Housings 8P IDC SOCKET RIBBON CABLE MNT Au SOCKET, 2MM, IDC, 8WAY CABLERIBBONSKT2MM8POSGOLD 3M 158 系列 2行 8路 2mm节距 直角 母 IDC 连接器 , 电缆安装 |
| Category |
Business
| Part # Aliases | 05111196818 80001251372 | Standard Package | Bulk |
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :3M - 158 Series | Voltage Rating | 500 V |
| Switch Function | Center Bump | Current Rating (Max) | 1A |
Mechanical
| Color | Gray | Pitch | 2 mm |
| Weight | 0.025 | Packaging | Bulk |
| Wire Type | Ribbon Cable | Wire Gauge | 28 AWG |
| Row Spacing | 0.079" (2.00mm) | Termination | IDT |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Socket | Contact Finish | Gold Over Nickel |
| Mounting Style | Cable | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Glass Fibre Reinforced PET |
| Primary Material | Rectangular | Cable Termination | IDC |
| Termination Style | Through Hole | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 8 | Contact Termination | :IDC / IDT |
| Number of Positions | 8 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | IDC Connector | Gender | SKT |
| Series | 158 | Features | Feed Through |
| Manufacturer | 158Series | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts

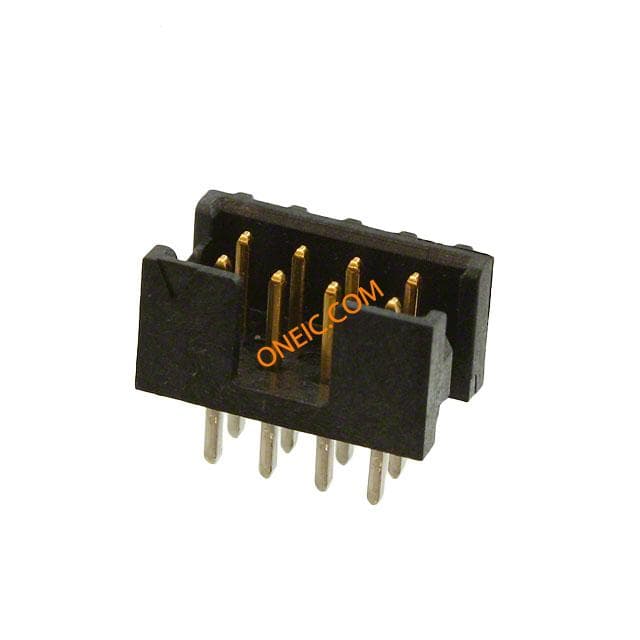

159108-6012
3m interconnect solutions
Conn Shrouded Header HDR 8 POS 2mm Solder ST Thru-Hole CONN HEADER 2MM 8POS VERT GOLD IDC Header 2mm 8w conn VTH centre bump Headers & Wire Housings 8P VERTICAL HEADER THRU-HOLE, Au HEADER, 2MM, VERT, THT, 8WAY CONNHEADER2MM8POSVERTGOLD 3M 159 系列 2行 8路 2mm节距 公 IDC 连接器 , 通孔

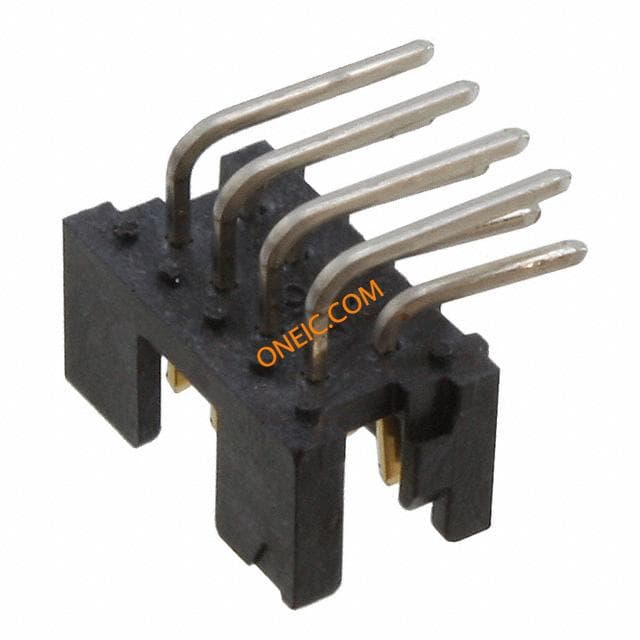

159208-5012
3m interconnect solutions
2MMHDR15AU8POSRATHCB.112TL CONN HEADER 2MM 8POS R/A GOLD Headers & Wire Housings 2MMHDR/15AU/08POS RATH/CB/.112TL

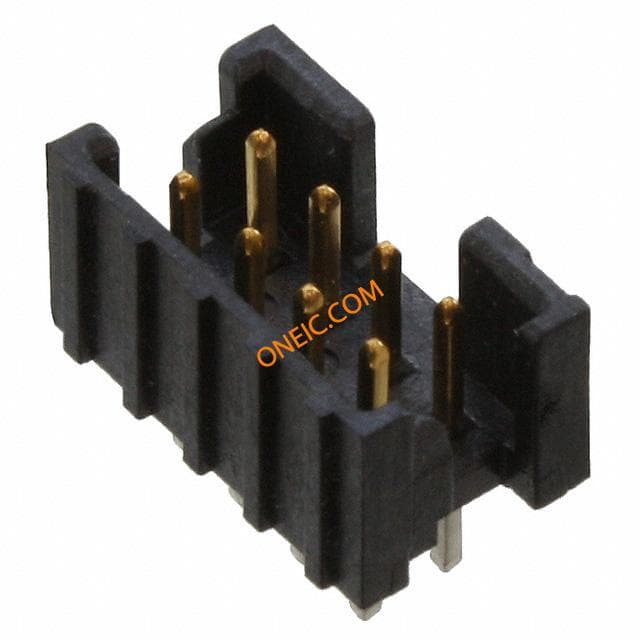

159208-6012
3m interconnect solutions
2MMHDR15AU8POSVTHCB.112TL CONN HEADER 2MM 8POS VERT GOLD Headers & Wire Housings 2MMHDR/15AU/08POS VTH/CB/.112TL

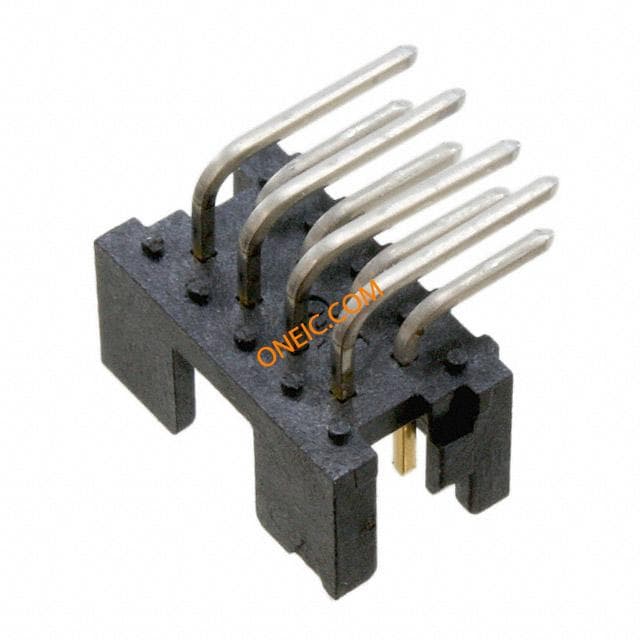

159108-5012
3m interconnect solutions
Conn Shrouded Header HDR 8 POS 2mm Solder RA Thru-Hole CONN HEADER 2MM 8POS R/A GOLD IDC Header 2mm 8w conn RATH centre bump Headers & Wire Housings 8P R/A HEADER THRU-HOLE, Au HEADER, 2MM, R/A, THT, 8WAY CONNHEADER2MM8POSR/AGOLD 3M 159 系列 2行 8路 2mm节距 直角 公 IDC 连接器 , 通孔
159108-2012
3m interconnect solutions
Conn Shrouded Header HDR 8 POS 2mm Solder ST SMD CONN HEADER 2MM 8POS VERT AU SMD IDC Header 2mm 8w conn VSMT centre bump Headers & Wire Housings 8P VERTICAL HEADER SMT, Au HEADER, 2MM, VERT, SMT, 8WAY CONNHEADER2MM8POSVERTAUSMD
3448-15808
3m interconnect solutions
STRRLF2MM158SRS8POS CABLE STRAIN RELIEF 2MM 8POS Headers & Wire Housings STRAIN RELIEF FOR 8P CNCTR STRAIN RELIEF, 8POS, POLYESTER 3M(TM)RIBBONCABLESOCKET,158SERIES,STRAINRELIEF,8POSITION
159208-2012
3m interconnect solutions
2MMHDR15AU8POSVSMTCB.112TL CONN HEADER 2MM 8POS VERT AU SMD Headers & Wire Housings 2MMHDR/15AU/08POS VSMT/CB/.112TL

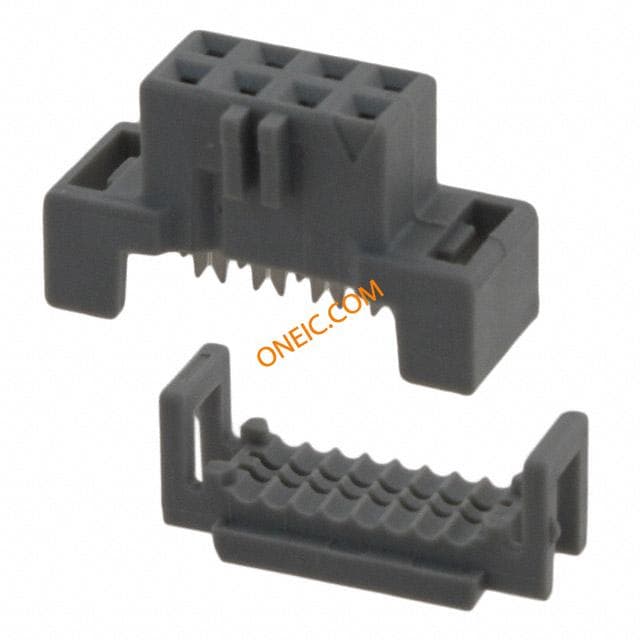

158108-1100
