点击放大查看

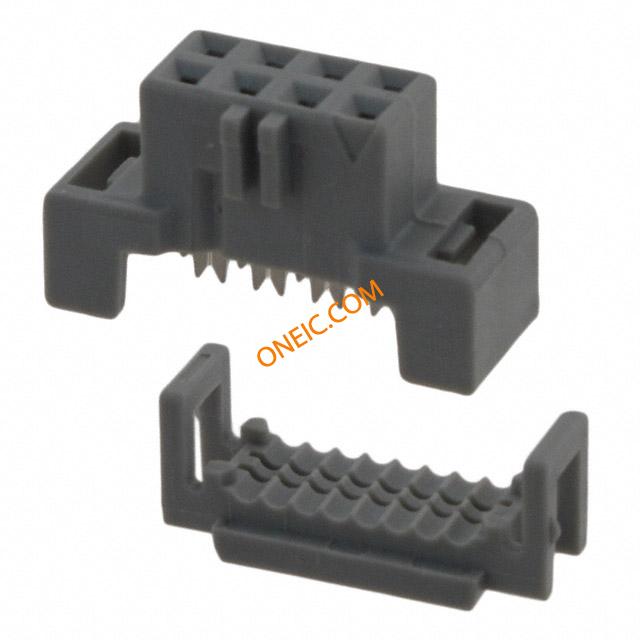

158108-1100
| Manufacturer | |
| Description | 2MM WMS8PADHCBTRAY30AU CABLE RIBBON SKT 2MM 8POS GOLD IDC Socket 2mm 8 way conn centre bump Headers & Wire Housings 158108-1100=2MM WMS 08P\ADH\CB\TRAY\30AU SOCKET, 2MM, IDC, 8WAY IDCSocket2mm8wayconncentrebump 3M 158 系列 2行 8路 2mm节距 直角 母 IDC 连接器 , 电缆安装 |
| Category |
Business
| Part # Aliases | 05111196812 80001251315 | Standard Package | 336 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :3M - 158 Series | Current Rating (Max) | 1A |
Mechanical
| Color | Gray | Pitch | 0.079" (2.00mm) |
| Weight | 0.025 | Packaging | Tray |
| Wire Type | Ribbon Cable | Wire Gauge | 28 AWG |
| Row Spacing | 0.079" (2.00mm) | Termination | IDT |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Socket | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Glass Fibre Reinforced PET | Cable Termination | IDC |
| Number of Contacts | 8 | Contact Termination | :IDC / IDT |
| Number of Positions | 8 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Gender | Female | Series | 158 |
| Features | Feed Through | ||
Environmental
| Operating Temperature | +105°C | ||
