158106-1100
| Manufacturer | |
| Description | 2MM WMS6PADHCBTRAY30AU 2MM RIBBON CABLE SOCKET 6 POS IDC Socket 2mm 6 way conn centre bump Headers & Wire Housings 158106-1100=2MM WMS 06P\ADH\CB\TRAY\30AU SOCKET, 2MM, IDC, 6WAY IDCSocket2mm6wayconncentrebump 3M 158 系列 2行 6路 2mm节距 直角 母 IDC 连接器 , 电缆安装 |
| Category |
Business
| Part # Aliases | 05111196836 80001251554 | Standard Package | 408 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :3M - 158 Series | Current Rating (Max) | 1A |
Mechanical
| Color | Gray | Pitch | 0.079" (2.00mm) |
| Weight | 0.025 | Packaging | Tray |
| Wire Type | Ribbon Cable | Wire Gauge | 28 AWG |
| Row Spacing | 0.079" (2.00mm) | Termination | IDT |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Socket | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Glass Fibre Reinforced PET | Cable Termination | IDC |
| Number of Contacts | 6 | Contact Termination | :IDC / IDT |
| Number of Positions | 6 | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Gender | Female | Series | 158 |
| Features | Feed Through | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts

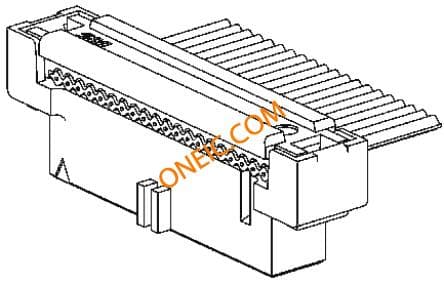

158206-0120
3m interconnect solutions
2MM WMS6PPRASMBLCBSWRD30AU 2MM RIBBON CABLE SOCKET 6 POS IDC Socket 2mm 6 way conn centre bump Headers & Wire Housings 2MM WMS/06P/PRASMBL CB/SWRD/30AU SOCKET, 2MM, IDC, 6WAY IDCSocket2mm6wayconncentrebump 3M 158 系列 2行 6路 2mm节距 直角 母 IDC 连接器 , 电缆安装

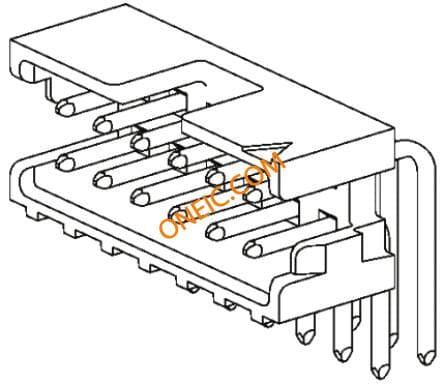

159106-5012
3m interconnect solutions
2MMHDR30AU6POSRATHCB.112TL 2MM SHROUDED BOARD MNT HDR 6 POS IDC Header 2mm 6w conn RATH centre bump Headers & Wire Housings 2MMHDR/30AU/06POS RATH/CB/.112TL HEADER, 2MM, R/A, THT, 6WAY IDCHeader2mm6wconnRATHcentrebump 3M 159 系列 2行 6路 2mm节距 直角 公 IDC 连接器 , 通孔

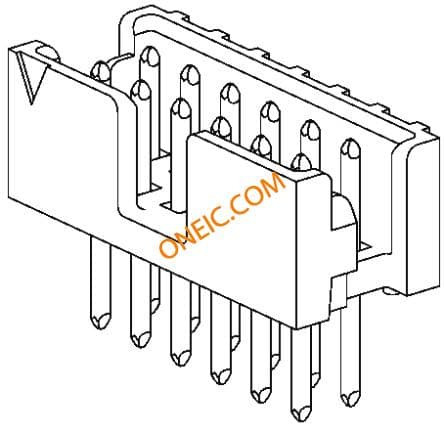

159106-6012
