159106-5012
| Manufacturer | |
| Description | 2MMHDR30AU6POSRATHCB.112TL 2MM SHROUDED BOARD MNT HDR 6 POS IDC Header 2mm 6w conn RATH centre bump Headers & Wire Housings 2MMHDR/30AU/06POS RATH/CB/.112TL HEADER, 2MM, R/A, THT, 6WAY IDCHeader2mm6wconnRATHcentrebump 3M 159 系列 2行 6路 2mm节距 直角 公 IDC 连接器 , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Part # Aliases | 05111557989 80001254137 | Standard Package | 432 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Range deg/s | :3M - 159 Series | Current Rating (Max) | 1A |
Mechanical
| Color | Black | Pitch | 0.079" (2.00mm) |
| Weight | 0.025 | Packaging | Tray |
| Row Spacing | 0.079" (2.00mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Number of Rows | 2 | Contact Material | Copper Alloy |
| Housing Material | Glass Fibre Reinforced Liquid Crystal Polymer | Number of Contacts | 6 |
| Contact Termination | :Through Hole Right Angle | Number of Positions | 6 |
| Contact Length - Mating | 0.153" (3.89mm) | Contact Finish Thickness | 30µin (0.76µm) |
| 1st Connector Mounting Type | :Right Angle | ||
Product Info
| Gender | Male | Series | 159 |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

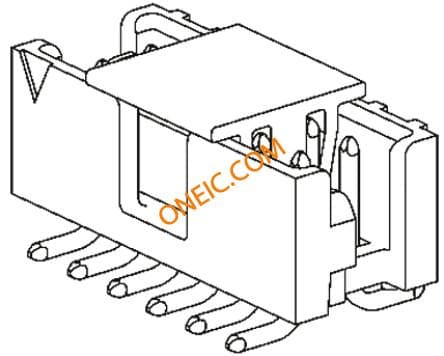

159106-2012
