点击放大查看
150210-5002-TB
| Manufacturer | |
| Description | Conn Socket Strip SKT 10 POS 2mm Solder RA Thru-Hole 2 mm x 2 mm Str. Surfacemount, Str. and R. A. Plated Through-Hole CONN SOCKET 2MM 10POS R/A 30GOLD Socket;Pak20Boardmount;CopperAlloy;GlassFilledPCT;1.5A;10;500VDC |
| Category |
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standards | ULListed,ULRecognized,cULRecognized |
| Approval Agency | cUL,UL | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage - Rated | 500VDC | Current Rating (Max) | 1.5A |
| Insulation Resistance | >5x10^9Ohms | ||
Mechanical
| Color | Black | Pitch | 2 mm |
| Plating | Gold | Packaging | Tray |
| Row Spacing | 0.079" (2.00mm) | Termination | Solder |
| Contact Type | Female Socket | Length - Pin | 0.1" |
| Socket Depth | Pak20Boardmount | Mounting Type | Through Hole, Right Angle |
| Angle of Throw | Right | Connector Type | Receptacle |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Terminal Style | SolderTails | Contact Material | CopperAlloy |
| Housing Material | GlassFilledPolyester | Length - Overall | 0.389" |
| Primary Material | InterconnectSystem | Size / Dimension | 0.389in.Lx0.310in.Wx0.179in.H |
| Pin Hole Diameter | 0.79" | Number of Contacts | 10 |
| Number of Positions | 10 | Material - Insulation | GlassFilledPCT |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Socket Strip | Gender | SKT |
| Features | Boardmount | Manufacturer | 1502Series |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55to+105°C | Operating Temperature - Junction | 105°C |
Documents & Media
Similar Parts
151210-7421-TH
3M Electronic Solutions Division
Headers & Wire Housings 10/2MM HDR/RA/.152 INT/.059 TAIL/15U CONN HEADER 2MM 10PS DL R/A 15AU
151210-8322-TB
3m interconnect solutions
Conn Unshrouded Header HDR 10 POS 2mm Solder ST Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN HEADER 2MM 10PS DL T/H 30AU Header; Pak 20 Pin Strip; Copper Alloy; Glass Filled Polyester; 10; 1.5 A Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;10;1.5A
151210-7322-RB
3m interconnect solutions
Conn Unshrouded Header HDR 10 POS 2mm Solder RA Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 10POS 2MM HEADER DUAL R/A
151210-2420-TB
3m interconnect solutions
Conn Unshrouded Header HDR 10 POS 2mm Solder ST SMD Tray CONN HEADER 2MM 10PS DL SMD 30AU
957210-2000-AR-TP
3m interconnect solutions
Conn Shrouded Header HDR 10 POS 2mm Solder ST SMD Tube 2 mm x 2 mm, Surface Mount Box Header CONN HDR 10POS 2MM VERT SMD 10AU Headers & Wire Housings 10P HDR STR SMT WIRE-BOARD CONNECTOR, HEADER, 10POS, 2MM
957210-6002-AR
3m interconnect solutions
Conn Shrouded Header HDR 10 POS 2mm Solder ST Thru-Hole 2 mm x 2 mm, Solder Tail Box Header CONN HDR 10POS 2MM VERT T/H 10AU Pin header, straight 10P, 957210-6002-AR, 3M
957210-5002-AR
3m interconnect solutions
Conn Shrouded Header HDR 10 POS 2mm Solder RA Thru-Hole 2 mm x 2 mm, Solder Tail Box Header CONN HDR 10POS 2MM R/A T/H 10AU Headers & Wire Housings 10P HDR RA THRUHOLE 3MM TAIL LENGTH Pin header, angled 10P, 957210-5002-AR, 3M
W151210-2420-TB
3M Electronic Solutions Division
Headers & Wire Housings 10P SMT T/R CONN HEADER 10POS 2MM STR SMD
151210-2420-RB-WC
3M Electronic Solutions Division
Headers & Wire Housings 10 CONTACTS 0.152IN. 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN 10POS 2MM HEADER DL STR SMD

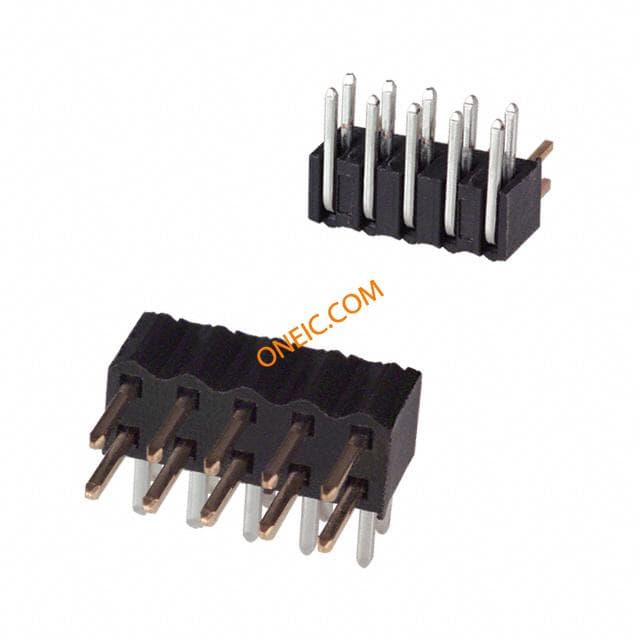

151210-7422-TB
