点击放大查看
151210-8322-TB
| Manufacturer | |
| Description | Conn Unshrouded Header HDR 10 POS 2mm Solder ST Thru-Hole 2 mm à 2 mm Solder Tail Straight & Right Angle, Surfacemount Straight CONN HEADER 2MM 10PS DL T/H 30AU Header; Pak 20 Pin Strip; Copper Alloy; Glass Filled Polyester; 10; 1.5 A Header;Pak20PinStrip;CopperAlloy;GlassFilledPolyester;10;1.5A |
| Category |
Business
| Standard Package | 500 | ||
Compliance
| RoHS | Contains lead / RoHS non-compliant | Standards | ULListed |
| Approval Agency | cUL,UL | Material Flammability Rating | UL94V-0 |
Electrical
| Voltage - Rated | 500VDC | Current Rating (Max) | 1.5A |
| Insulation Resistance | 5x10^9Ohms(Max.)@250VDC | ||
Mechanical
| Color | Black | Depth | 3.94 |
| Pitch | 0.079" (2.00mm) | Height | 4.8 |
| Plating | Gold-MIL-G-45204,TypeII,GradeC | Packaging | Bulk |
| Row Spacing | 0.079" (2.00mm) | Termination | Solder |
| Contact Type | Male Pin | Length - Pin | 0.118" |
| Housing Color | Black | Mounting Type | Straight |
| Angle of Throw | Straight | Connector Type | Header, Unshrouded |
| Contact Finish | Gold Over Nickel | Number of Rows | 2 |
| Terminal Style | StraightSolderTail | Contact Material | Copper Alloy |
| Housing Material | Polychlorinated Terphenyl|Liquid ... | Length - Overall | 0.394" |
| Primary Material | InterconnectSystem | Size / Dimension | 0.374in.+0.005in.,-0.010in.Lx0.155in.Wx0.059in.H |
| Pin Hole Diameter | 0.0787" | Number of Contacts | 10 |
| Number of Positions | 10 | Material - Insulation | GlassFilledPolyester |
| Contact Length - Mating | 0.130" (3.30mm) | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Type | Unshrouded Header | Gender | HDR |
| Features | Pinstrip | Manufacturer | 1512Series |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -55to+105°C | Operating Temperature - Junction | 105°C |
Similar Parts

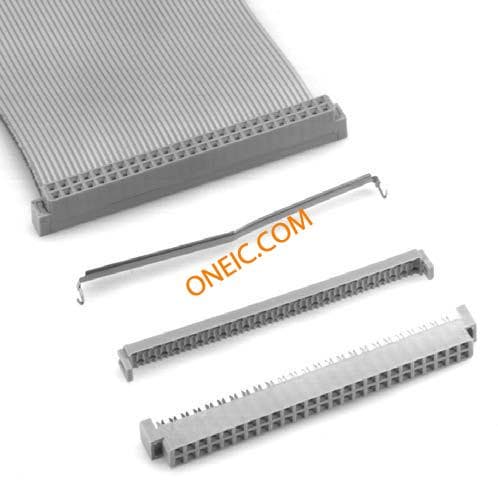

152210-0103-GB
