点击放大查看

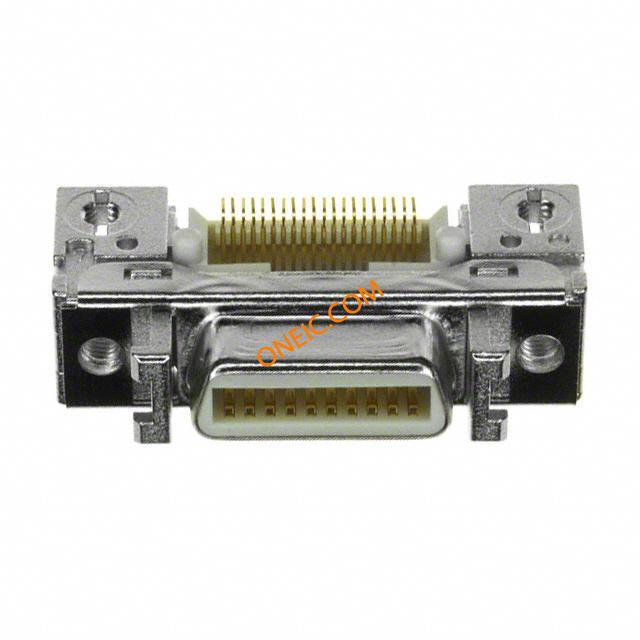

10220-1S10PE
| Manufacturer | |
| Description | Conn SCSI RCP 20 POS 1.27mm Solder RA SMD 20 Terminal 1 Port D-Sub Micro-D Connectors 20P SMT RA RECEPT .050" Surface Mount Right Angle Die-Cast Receptacle â Shielded CONN MDR RCPT 20POS R/A SMD 20AU MINI D RIBBON CONN, RECEPTACLE 20POS SMD |
| Category |
Business
| Part # Aliases | 05111173193 JE150320248 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85366930 |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Pitch | 1.27 mm | Weight | 0.009 |
| Termination | Solder | Mounting Type | Surface Mount |
| Connector Type | Receptacle | Contact Finish | Gold |
| Flange Feature | Insert, Threaded (M2.5); Latchblocks | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Connector Style | Outer Shroud Contacts |
| Contact Material | Copper Alloy | Termination Style | Solder |
| Number of Contacts | 20 | Contact Termination | :Surface Mount Right Angle |
| Number of Positions | 20 | Contact Finish Thickness | 20µin (0.51µm) |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | SCSI | Gender | RCP |
| Series | :MDR | Features | Board Guide, Shielded |
