点击放大查看

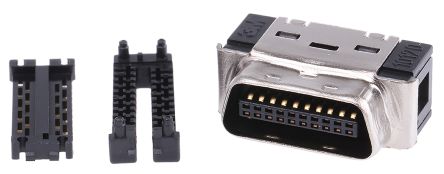

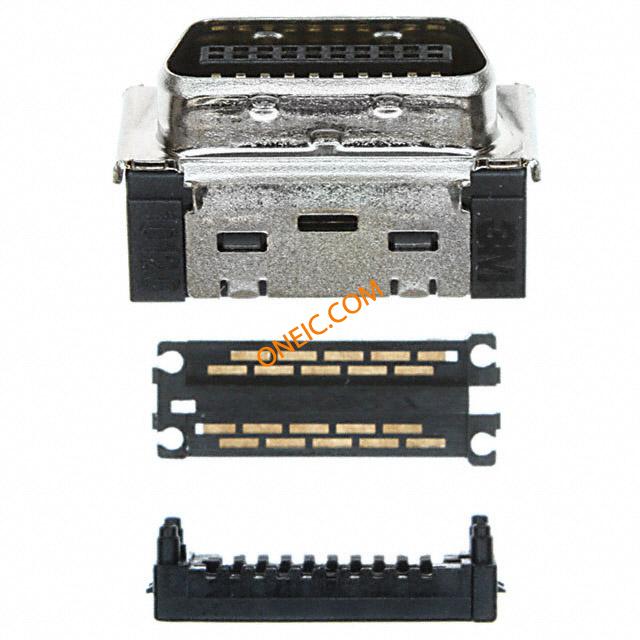

10120-6000EC
| Manufacturer | |
| Description | D-Sub Micro-D Connectors 20P PLUG SHIELDED IDC WIREMOUNT Wiremount Plug, IDC, Shielded CONN MDR PLUG 20POS IDC GOLD Plug MDR IDC shielded 20 pin .050 Mini D Ribbon (MDR) 20 Pos. IDC Wiremount Plug-Shielded .050MiniDRibbon(MDR)20Pos.IDCWiremountPlug-Shielded 3M 101 系列 1.27mm 节距 20 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳 |
| Category |
Business
| Part # Aliases | 90169008639 JE150174850 | Product Category | D-Sub Micro-D Connectors |
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | RoHS Compliance | Yes |
Electrical
| Current Rating (Max) | 1 A | ||
Mechanical
| Depth | 9.1mm | Pitch | 1.27mm |
| Width | 12.7mm | Length | 22mm |
| Weight | 1 lb | Orientation | 直 |
| Termination | IDC | Mounting Type | Straight |
| Shell Plating | Nickel | Connector Type | Plug |
| Contact Finish | Gold | Mounting Style | Wire |
| Number of Rows | 2 | Connector Style | Center Strip Contacts |
| Contact Material | Beryllium Copper | Housing Material | 钢 |
| Size / Dimension | 22 x 12.7 x 9.1mm | Termination Style | IDC |
| Number of Contacts | 20 | Number of Positions | 20 |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Gender | Male | Series | 101 |
| Features | Shielded | ||
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
Similar Parts
N10220-52B2PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Diecast Body CONN MINI-D 20POS R/A RECPT Receptacle MDR PCB 90deg 20 pin 3M MDR 102 系列 1.27mm 节距 20 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
10220-0210EC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P RECEPT SHIELDED IDC WIREMNT PANELMNT Wiremount/Panelmount Receptacle, IDC, Shielded CONN MDR RECPT 20POS IDC GOLD Plug IDC Panel Mount MDR Series 20 way PlugIDCPanelMountMDRSeries20way 3M 102 系列 1.27mm 节距 20 路 IDC Mini-D 带状电缆连接器, 插头, 钢外壳
10220-1210PE
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P R/A SHLD RECEPT SURFACE MOUNT Boardmount Receptacle, Surface Mount, Right Angle, Shielded CONN MDR RECEPT 20POS R/A SMD RECEPTACLE, MDR, SMT, 20WAY RECEPTACLE,SHIELDED,SURFACEMOUNT,RIGHTANGLE,20CONTACTS Connector: MDR; socket; female; horizontal; shielded; PIN:20; 1A MDR socket 20P, 10220-1210PE, 3M
10220-55G3PC
3M Electronic Solutions Division
D-Sub Micro-D Connectors 20P R/A SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 20POS R/A M2.5 Socket MDR 102 Series SMT 20 way SOCKET, MDR, THT, RA, 30WAY SocketMDR102SeriesSMT20way 3M MDR 102 系列 1.27mm 节距 20 路 直角 通孔安装 Micro-D 印刷电路板连接器 插座
10320-C200-00
3M Electronic Solutions Division
D-Sub Backshells 20P JUNCTION SHELL STRT EXIT W/O KEY Zn CONN BACKSHELL 20POS 180DEG SHLD BACKSHELL, MDR, 20WAY, METAL
3829
3M Electronic Solutions Division
Crimpers HAND PRESS TOOL HAND FOR MINI-D PLUG MiniDRibbon(MDR)IDCHandtoolKit(forterminatingcabletoMDRIDCplugs)
10220-6212PC
3m interconnect solutions
Conn SCSI RCP 20 POS 2.54mm Solder ST Thru-Hole 20 Terminal 1 Port D-Sub Micro-D Connectors 20P VERT SHLD RECEPT BOARDMNT M2.5 THREAD Boardmount Receptacle, Through-hole, Vertical, Shielded CONN MDR RECPT 20POS VERT T/H Receptacle MDR PCB straight 20 pin .050 Mini D Ribbon Connector (20 Pos) Receptacle Vertical Boardmount Shielded .050MiniDRibbonConnector(20Pos)ReceptacleVerticalBoardmountShielded 3M MDR 102 系列 1.27mm 节距 20 路 直向 通孔安装 Micro-D 印刷电路板连接器 插座
10220-55H3PC
3m interconnect solutions
Conn SCSI RCP 20 POS 2.54mm Solder RA Thru-Hole 20 Terminal 1 Port D-Sub Micro-D Connectors 20P R/A SHLD RECEPT BOARDMNT 4-40 THREAD Boardmount Receptacle, Through-hole, Right Angle, Shielded, Molded Body CONN MDR RCPT 20POS R/A 4-40 .050MiniDRibbon(MDR)20Pos.Thru-HoleRightAngleReceptacle-Shielded
10220-2210PE
3m interconnect solutions
Conn SCSI RCP 20 POS 1.27mm Solder ST SMD 20 Terminal 1 Port D-Sub Micro-D Connectors 20P SMT SOCKET VERTICAL SHIELDED Boardmount Receptacle, Surface Mount, Vertical, Shielded CONN MINI-D 20POS VERT RECPT 3M 102 Series 0.5in 20 Way 2 Row Right Angle PCB Socket Surface Mount RECEPTACLE, MDR, SMT, 20WAY Conn;D-Sub;Mini-D-Ribbon;CableSocket;20Pos;STR;102Series;SMT;.050In. 3M 102 系列 2行 20路 直角 12.7mm节距 表面贴装 印刷电路板插座

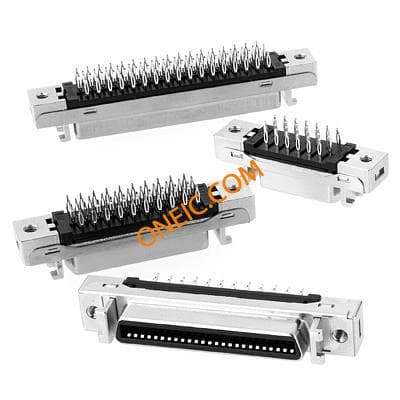

10220-R21TS
