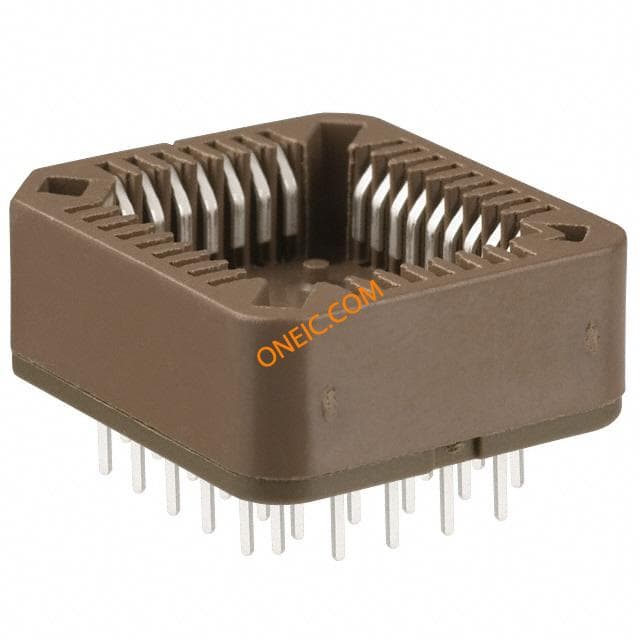

8432-11B1-RK-TP
| Manufacturer | |
| Description | IC & Component Sockets 32P PLCC SOCKET THRU-HOLE Low Profile, Four-Row, Through-Hole IC SOCKET 32POS PLCC THRU-HOLE CHIP CARRIER SOCKET THRU-HOLE 32W Conn PLCC Socket SKT 32 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC, PLCC, 32WAY 3M 8400 系列 32 针 1.27mm 节距 通孔 母 PLCC 针座 , 锡镀镍 电镀触点 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | PLCC Sockets | Part # Aliases | 05111166307 80000905259 |
| Product Category | IC & Component Sockets | Standard Package | 1,392 |
| Factory Pack Quantity | 1392 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Tariff No | 85369010 |
| Rad Hardened | No | RoHS Compliance | Yes |
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Contact Resistance | 15 mohm | Dielectric Strength | :500V |
| Insulation Resistance | 1000 Mohm | Connector - Voltage Input | :PLCC |
Mechanical
| Depth | 20.6 mm | Pitch | 0.050" (1.27mm) |
| Width | :17.9mm | Height | 8mm |
| Length | :7.7mm | Weight | 0.015 |
| Base Type | Open Frame | Packaging | Tube |
| Row Spacing | 10.16 mm | Termination | Solder |
| Lead Spacing | :1.27mm | Mounting Type | Through Hole |
| Connector Type | :PLCC | Contact Finish | Tin |
| Mounting Style | Through Hole | Number of Rows | 4 |
| Insertion Force | :0.17kgf | Contact Material | Copper Alloy |
| Housing Material | PET | Length - Overall | 18.05 mm |
| Termination Style | Solder Tail | Number of Contacts | 32 |
| Contact Termination | :Through Hole Vertical | Insulation Material | Polyester |
| Number of Positions | Not Required | Contact Finish Thickness | 160µin (4.06µm) |
| 1st Connector Mounting Type | :PC Board | Number of Positions or Pins (Grid) | 32 (2 x 7, 2 x 9) |
Product Info
| Type | Chip Carrier, PLCC | Gender | Female |
| Series | :8400 | DELETED | Compliant |
| Features | Closed Frame | CAD Drawing | 3D CAD Model |
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts
8432-11B1-RK-TP
3M Electronic Solutions Division
IC & Component Sockets 32P PLCC SOCKET THRU-HOLE Low Profile, Four-Row, Through-Hole IC SOCKET 32POS PLCC THRU-HOLE CHIP CARRIER SOCKET THRU-HOLE 32W Conn PLCC Socket SKT 32 POS 2.54mm Solder ST Thru-Hole Tube SOCKET IC, PLCC, 32WAY 3M 8400 系列 32 针 1.27mm 节距 通孔 母 PLCC 针座 , 锡镀镍 电镀触点
$10.9434
