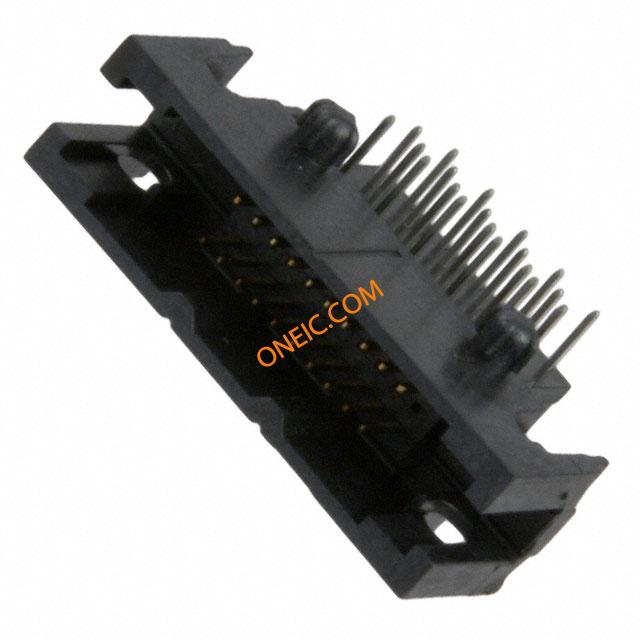

81020-M00203-RB
| Manufacturer | |
| Description | Headers & Wire Housings 20POS R/A 4ROW SLD HEADER CONN HEADER 20POS R/A 4ROW SLD |
| Category |
Business
| Part # Aliases | 80000901522 | Product Category | Headers & Wire Housings |
| Standard Package | 100 | ||
Electrical
| Current Rating (Max) | 500 mA | ||
Mechanical
| Color | Black | Pitch | 0.050" (1.27mm) |
| Packaging | Bulk | Row Spacing | 0.100" (2.54mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | Copper Alloy | Termination Style | Through Hole |
| Number of Positions | 20 | Contact Length - Mating | 0.140" (3.56mm) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Latch / Eject Header | Series | 810 |
| Features | Board Lock | Product Type | Headers |
| Number of Positions Loaded | All | ||
