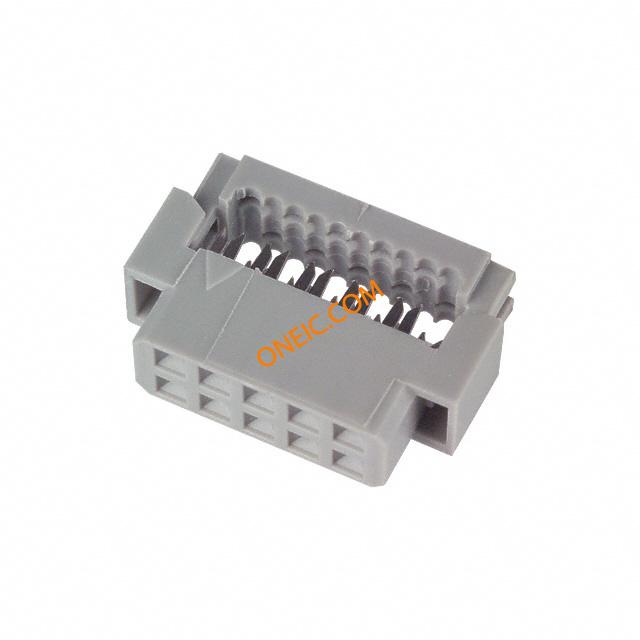

152210-0100-GB
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 10P LO PRO SOCKET Headers & Wire Housings 10P LO PRO SOCKET CONN 10POS 2MM IDC SOCKET GOLD Socket; Pak 20 Wiremount; 1 mm pitch cable; Copper Alloy; 1 A; 1000 V (RMS) WIRE-BOARD CONNECTOR, SOCKET, 10POS, 2MM Socket;Pak20Wiremount;1mmpitchcable;CopperAlloy;1A;1000V(RMS) |
| Category |
Business
| Part # Aliases | 05113827581 80610492326 | Product Category | Headers & Wire Housings |
| Standard Package | 125 | Factory Pack Quantity | 125 |
Compliance
| RoHS | Compliant | Standards | ULListed,ULRecognized,cULRecognized,RoHSCompliant |
| Tariff No | 85411000 | Approval Agency | cUL,UL |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Range deg/s | :3M - 1522 Series | Voltage - Rated | 1000V(RMS) |
| Current Rating (Max) | 1A | Insulation Resistance | >1x10^9Ohms |
Mechanical
| Color | Gray | Pitch | 0.079" (2.00mm) |
| Weight | 0.002 | Plating | Gold |
| Packaging | Bulk | Wire Type | Ribbon Cable |
| Cable Exit | LowProfile | Wire Gauge | 28 AWG |
| Row Spacing | 0.079" (2.00mm) | Termination | IDC |
| Contact Type | Female Socket | Socket Depth | Pak20Wiremount |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Connector Type | Receptacle | Contact Finish | Gold |
| Mounting Style | Cable | Number of Rows | 2 |
| Contact Material | :Copper Alloy | Housing Material | GlassFilledPolyester |
| Length - Overall | 0.59" | Primary Material | InterconnectSystem |
| Size / Dimension | 0.59in.Lx0.16in.Wx0.29in.H | Wire Termination | 28AWGStranded |
| Cable Termination | IDC | Pin Hole Diameter | 0.079" |
| Termination Style | IDC | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 10 | Contact Termination | :IDC / IDT |
| Number of Positions | 10 | Material - Insulation | GlassFilledPolyester(PBT) |
| Contact Finish Thickness | 30µin (0.76µm) | ||
Product Info
| Type | Ribbon Cable | Gender | :Receptacle |
| Series | 1522 | Features | Feed Through |
| Manufacturer | 1522Series | Product Type | Receptacles / Sockets - Housings |
| For Use With/Related Products | 1mmpitchcable | ||
Environmental
| Operating Temperature | -67to+221°F | Operating Temperature - Junction | +105°C |
