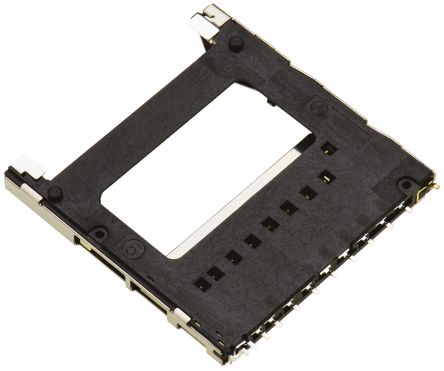

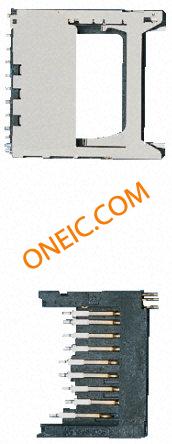

FPS009-2405-0
| Manufacturer | |
| Description | Pushin/pushout SD card & MMC conn,0.5A CONNECTOR, SD, PUSH PULL, SMT, R/A SDCARD/MMC(PUSH-PUSH) Yamaichi 9针(1行) 直角 表面安装 公 SD 卡连接器 , 焊接端接 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | :250V | Contact Resistance | :100mohm |
| Voltage - Breakdown | :500V | Current Rating (Max) | :0.5A |
| Insulation Resistance | :1000Mohm | ||
Mechanical
| Depth | 28mm | Pitch | :2.5mm |
| Width | 2.8mm | Length | 30.5mm |
| Weight | 0.05 | Termination | Solder |
| Mounting Type | Right Angle | Connector Type | :Memory Card |
| Contact Finish | Gold over Nickel | Number of Rows | 1 |
| Contact Material | :Copper | Housing Material | Liquid Crystal Polymer |
| Size / Dimension | 30.5 x 2.8 x 28mm | Number of Contacts | 9 |
| Contact Termination | :Surface Mount Right Angle | ||
Product Info
| Gender | Male | Series | :FPS |
| Card Type | SD Card | ||
Environmental
| Mating Cycles | :10000 | Operating Temperature | +85°C |
