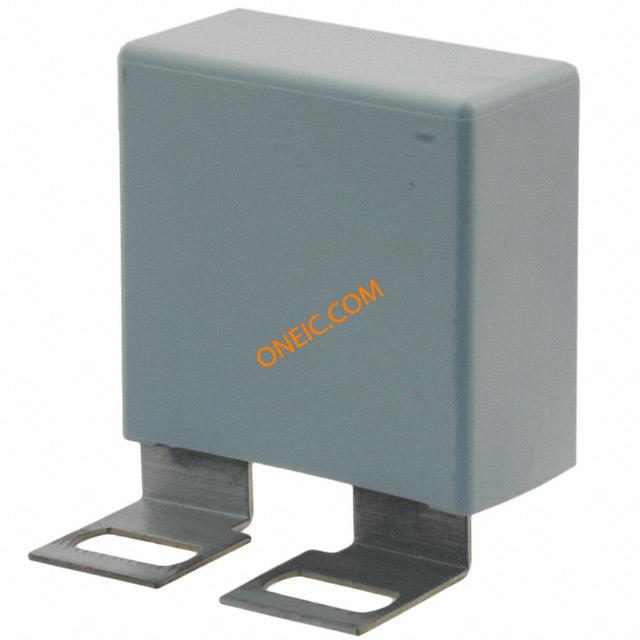

C4BSNBX4100ZBFJ
| Manufacturer | |
| Description | Film Capacitors 1000volts 1.0uF CAP FILM 1UF 1KVDC QC TERM Cap Film 1uF 1000V PP 5% (41.5 X 20 X 40mm) 0.0037 Ohm 85C Bulk CAPACITOR, SNUBBER, 1000V, 1UF Capacitor;Film;Cap1uF;Tol5%;Snubber;Vol-Rtg1000V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Metallized Polypropylene Capacitors | Part # Aliases | 4BSNBX4100ZBFJ |
| Product Category | Film Capacitors | Standard Package | 48 |
| Factory Pack Quantity | 52 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85322100 | Rad Hardened | No |
Electrical
| Voltage | 1000VDC/600VAC | Tolerance | 5 % |
| Capacitance | 1 uF | Range deg/s | :KEMET - C4B Series |
| Voltage Rating | 1 kV | Capacitance - Input | :- |
| ESR (Equivalent Series Resistance) | 3.7 mOhms | ||
Mechanical
| Size | 41.5 X 20 X 40 | Depth | 20 mm |
| Width | 20 mm | Height | 40 mm |
| Length | :20mm | Weight | 0.075 |
| Diameter | Not Required mm | Packaging | Bulk |
| Termination | Quick Connect, Disconnect | Height (Max) | Not Required mm |
| Lead Spacing | 0.866" (22.00mm) | Mounting Type | Chassis Mount |
| Mounting Style | Through Hole | Number of Pins | :2 |
| Package / Case | 40 mm | Length - Overall | 41.5 mm |
| Material - Blade | PolypropyleneMetallized | Size / Dimension | 1.634" L x 0.787" W (41.50mm x 20.00mm) |
| Termination Style | Radial | Dielectric Material | Polypropylene (PP) |
| Height - Seated (Max) | 1.575" (40.00mm) | Diameter - Small Outside | Not Required mm |
Product Info
| Type | IGBT Snubber | Series | MKP C4BS |
| Applications | Snubber | Failure Rate | Not Required |
| Product Type | Snubber | ||
Environmental
| Rated Life | :30000 hours @ 85°C | Operating Temperature | - 40 C to + 85 C |
| Temperature Coefficient | PP | ||
