VEP24US12
| Manufacturer | |
| Description | POWER SUPPLY, SWITCH MODE, 12V ADPT MULTI-PLUG 12VDC 2A 24W |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1470-2337 | Standard Package | 5 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85044030 | Approval Agency | :cCSAus 60601, CSAC22.2 No.60601, IEC 60601, UL 60601 |
Electrical
| Efficiency | :78% | Output Type | :Fixed |
| Power - Max | :24W | Power (Watts) | 24W |
| Line Regulation | ±0.5% | Load Regulation | ±5% |
| Current - Output | :2A | Number of Outputs | :1 |
| Power Supply Type | :Switch Mode | Voltage - Isolation | :4000V |
| Output Ripple Voltage | :100mV | Voltage - Input (Min) | :80V to 264V |
Mechanical
| Depth | :47.9mm | Width | :88mm |
| Length | :29mm | Weight | 0.16 |
| Cord Length | 59" (1.5m) | Polarization | Positive Center |
| Output Connector | :2.5mm x 5.5mm x 11mm | Length - Lead Wire | :1.8m |
Product Info
| Form | Wall Mount (Multi Plug - Sold Separately) | Features | OCP, OVP, SCP |
| Applications | :Medical | Region Utilized | International |
Environmental
| Operating Temperature | :40°C | ||
Similar Parts
VEP PLUG EU
XP POWER
INPUT PLUG, EU, VEP SERIES PSU VEP EU AC INPUT PLUG
$9.0600
Details
VEP PLUG UK
XP POWER
INPUT PLUG, UK, VEP SERIES PSU VEP UK AC INPUT PLUG
$9.0600
Details
VEP PLUG US
XP POWER
INPUT PLUG, US, VEP SERIES PSU VEP US AC INPUT PLUG
$5.3040
Details

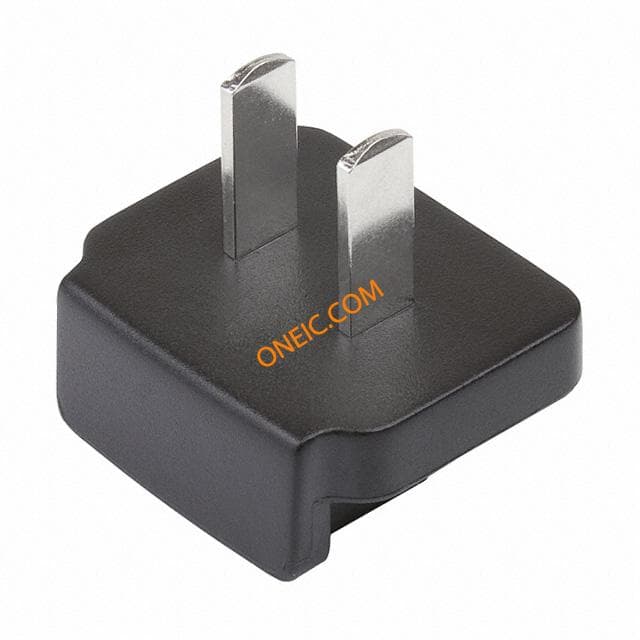

VEP PLUG CN
XP Power
VEP CHINA AC INPUT PLUG
$6.1200
Details

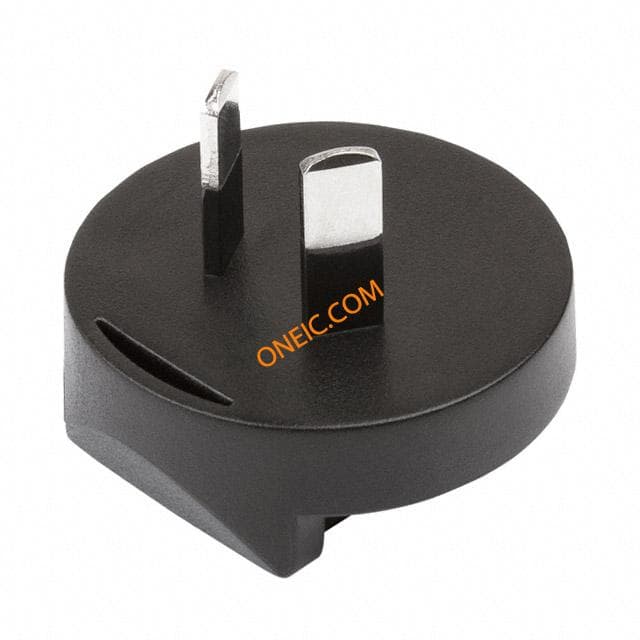

VEP PLUG AU
