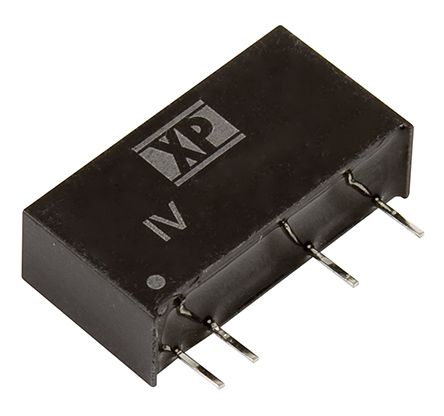

IV0512SA
| Manufacturer | |
| Description | CONVERTER, DC/DC, 1W, 12V DC/DC CONVERTER 12V 1W XP Power IV 系列 1W 隔离式直流-直流转换器 , 12V dc输出, 最大 84mA输出 ±10%负载调节 Maximum of 1.2%线路调节 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1470-1604-5 | Standard Package | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85044030 | ||
Electrical
| Efficiency | :80% | Power - Max | :1W |
| Power - Rated | :1W | Converter Type | :Isolated POL |
| Voltage Rating | :5VDC | Line Regulation | :1.2% |
| Load Regulation | :8% | Current - Output | :84mA |
| Voltage - Supply | :5V | Number of Outputs | :1 |
| Power (Watts) - Max | 1W | Voltage - Isolation | :3kV |
| Voltage - Input (Min) | :Fixed | DC Voltage - Input (Max) | :5.5V |
| Voltage - Continuous Operating (Max) (MCOV) | :5.5V | ||
Mechanical
| Depth | :19.5mm | Width | :6mm |
| Height | :9.5mm | Weight | 0.002 |
| Packaging | Tube | Mounting Type | :Through Hole |
| Package / Case | 4-SIP Module | Size / Dimension | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) |
Product Info
| Type | Isolated Module | ||
Environmental
| Operating Temperature | :85°C | ||
