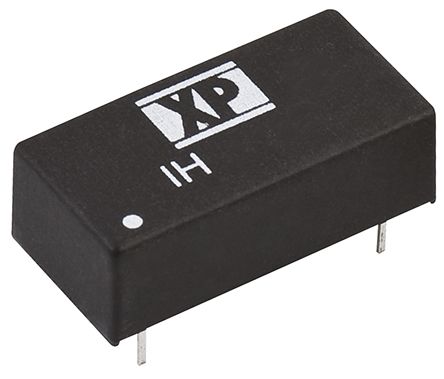

IH2412D
| Manufacturer | |
| Description | CONVERTER, DC/DC, 2W, +/-12V DC/DC CONVERTER +/-12V 2W XP Power IH 系列 2W 隔离式直流-直流转换器 , 12V dc输出, ±84mA输出 ±10%负载调节 Maximum of 1.2%线路调节 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 1470-1459-5 | Standard Package | 25 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85044030 | ||
Electrical
| Efficiency | :75% | Power - Max | :2W |
| Power - Rated | :2W | Converter Type | :Isolated POL |
| Voltage Rating | :12V | Line Regulation | :1.2% |
| Load Regulation | :8% | Current - Output | :84mA, 84mA |
| Voltage - Supply | :24V | Number of Outputs | :2 |
| Current - Output 2 | :84mA | Power (Watts) - Max | 2W |
| Voltage - Isolation | :1kV | Voltage - Input (Min) | :Fixed |
| DC Voltage - Input (Max) | :26.4V | Voltage - Continuous Operating (Max) (MCOV) | :26.4V |
Mechanical
| Depth | :20.32mm | Width | :10.16mm |
| Height | :6.88mm | Weight | 0.0025 |
| Packaging | Tube | Mounting Type | :Through Hole |
| Package / Case | 6-DIP Module | Size / Dimension | 0.80" L x 0.40" W x 0.27" H (20.3mm x 10.2mm x 6.9mm) |
Product Info
| Type | Isolated Module | ||
Environmental
| Operating Temperature | :85°C | ||
