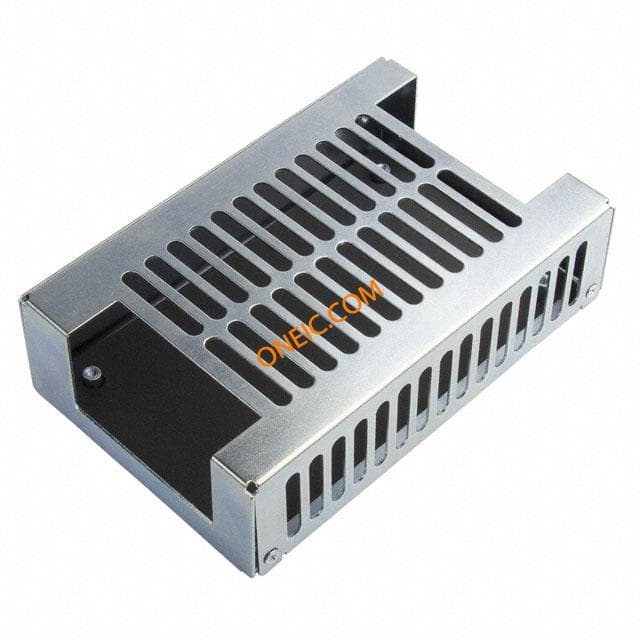

点击放大查看
ECM140US18
| Manufacturer | |
| Description | PSU, OPEN FRAME, 140W, 18V AC/DC CONVERTER 18V 140W |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 5 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85044030 | Approval Agency | :CSA 22.2 No. 60601, EN 60601, ES 60601 |
Electrical
| Efficiency | :88% | Output Type | :Fixed |
| Power - Max | :120W | Power (Watts) | 140W |
| Power - Rated | :120W | Voltage Rating | :80V AC to 264V AC , 120V DC to 370V DC |
| Current - Output | :6.6A | Voltage - Supply | :264V |
| Number of Outputs | :1 | Power Supply Type | :Switch Mode |
| Power (Watts) - Max | 120W (148W Forced Air) | Voltage - Isolation | 4kV (4000V) |
| Minimum Load Required | No | Voltage - Input (Min) | :80V to 264V |
| DC Voltage - Input (Max) | :370VDC | Voltage - Continuous Operating (Max) (MCOV) | :264V |
Mechanical
| Depth | :76.2mm | Width | :127.0mm |
| Height | :31.8mm | Length | :31.8mm |
| Weight | 0.295 | Mounting Type | :Chassis |
| Size / Dimension | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) | ||
Product Info
| Type | Open Frame | Features | Universal Input |
| Applications | ITE (Commercial), Medical | ||
Environmental
| Operating Temperature | :70°C | ||
