点击放大查看
618015231321
| Manufacturer | |
| Description | 10.3mm 15 way 90deg D-sub PCB Socket D-Sub Standard Connectors WR-DSUB Female Angled PCB 15 pins SOCKET, D-SUB, PCB, R/A, 15WAY Wurth Elektronik 618 系列 2.77 mm, 2.84 mm 节距 15 路 直角 通孔安装 PCB D-sub 连接器 插座 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | ||
Electrical
| Range deg/s | :WURTH ELEKTRONIK - R/A PCB Mount Dsub | Voltage Rating | 125 V ac/dc |
| Current Rating (Max) | 3A | ||
Mechanical
| Depth | 20.75mm | Pitch | 2.77 mm, 2.84 mm |
| Width | 12.5mm | Height | 12.5 mm |
| Length | 39.2mm | Weight | 0.01284 |
| Packaging | Tray | Insulation | Insulated |
| Shell Size | :DA | Contact Type | Stamped / Formed Contacts |
| Mounting Type | Right Angle | Shell Plating | Nickel |
| Contact Finish | Gold | Number of Rows | 2 |
| Shell Material | Steel | Contact Material | Copper Alloy |
| Housing Material | Steel | Size / Dimension | 39.2 x 12.5 x 20.75mm |
| Termination Style | SMD | Number of Contacts | 15 |
| Contact Termination | :Solder | Insulation Material | Polybutylene Terephthalate (PBT) |
Product Info
| Gender | Female | Series | 618 |
Environmental
| Mating Cycles | :50 | Operating Temperature | +85°C |
Documents & Media
PDF Document
Similar Parts

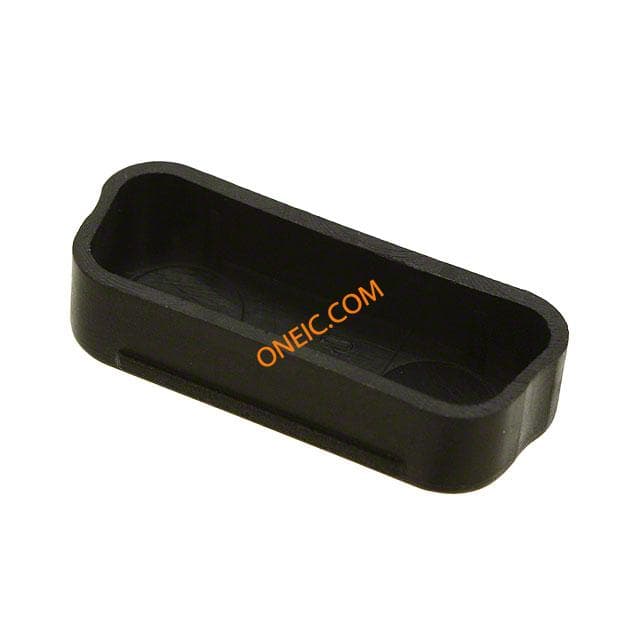

726181103
