430481025816
| Manufacturer | |

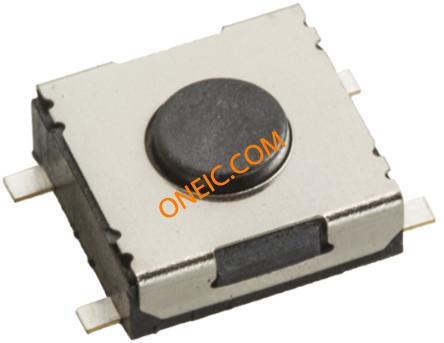

| Description | Tact Switch 6x6mm Height 2.5mm Black SWITCH, 160GF, WASHABLE, BLK, SMD, 2.5MM Wurth Elektronik 黑色 触觉式 触觉开关 , 常开, 50 mA 0.5mm 表面安装 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85365011 |
Electrical
| Contact Resistance | :100mohm | Current - Max/Contact | :50mA |
| Insulation Resistance | :100Mohm | Switch Function/Rating | On-Off |
| Contact Rating (Current) | 50 mA | Connector - Voltage Input | :Solder |
| Voltage - Supply (Vcc/Vdd) | :12V | ||
Mechanical
| Depth | :6.2mm | Width | :6.2mm |
| Height | :2.5mm | Length | :2.5mm |
| Weight | 0.001 | Actuator Type | Tactile |
| Terminal Type | Solder | Actuator Color | Black |
| Actuator Length | 0.5mm | Operating Force | 160 g |
| Contact Material | Stainless Steel | Color - Actuator/Cap | :Black |
| Switch Actuation Level | :Raised | Contact Layout, Typical | NO |
Environmental
| Mechanical Life | 1000000Cycles | Switching Cycles | :1000000 |
| Operating Temperature | +85°C | ||
Documents & Media
PDF Document
