点击放大查看
744822233
| Manufacturer | |
| Description | Common Mode Filters / Chokes WE-CMB S CHOKE TOROID 3.3MH 1.5A VERT Wurth 3.3mH ±30% Leaded Inductor, 1.5A Idc, 120mΩ Rdc Common Mode Filters / Chokes WE-CMB Choke 3.3mH 10kHz 120mohm CHOKE, COMMON MODE, 3.3MH 1.5A Wurth WE-CMB 系列 3.3 mH ±30% 引线型电感器, 1.5A Idc, 120mΩ Rdc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Common Mode Inductors | Other Names | 732-1441 |
| Standard Package | 140 | Factory Pack Quantity | 140 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Current | 1.5A | Core Type | :Common Mode |
| Tolerance | 30 % | Inductance | 3.3 mH |
| Filter Type | Power Line | Range deg/s | :WURTH ELEKTRONIK - WE-CMB Series |
| Test Frequency | 10 kHz | Inductance Range | :± 30% |
| Current Rating - DC | :1.5A | DC Resistance (DCR) | 120 mOhm Max |
| Current Rating (Max) | 1.5 A | DC Resistance (DCR) (Max) | :0.12ohm |
| Resistance - Initial (Ri) (Min) | 120 mOhms | ||
Mechanical
| Depth | 13mm | Width | 13 mm |
| Height | 22mm | Length | 17.5mm |
| Weight | 0.0074 | Packaging | Tray |
| Height (Max) | 0.866" (22.00mm) | Lead Spacing | 7.7 mm |
| Pitch - Post | 7.7mm | Mounting Type | Through Hole |
| Number of Pins | :4 | Package / Case | 22 mm |
| Size / Dimension | 13 mm W x 17.5 mm L x 22 mm H | Termination Style | Radial |
Product Info
| Type | Common Mode Power Line Choke | Series | WE-CMB |
| Number of Lines | 2 | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
PDF Document
Similar Parts
1399075-M
MULTICORE (SOLDER)
SOLDER WIRE, 99.3/0.7, 227 DEG, 500G
$256.4960
Details

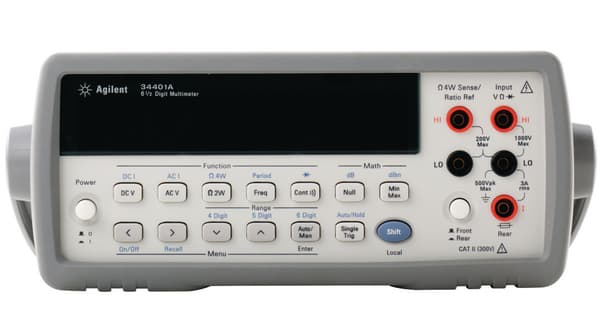

34401A
