7447789122
| Manufacturer | |
| Description | 固定インダクタ WE-PD Inductor 22uH 1kHz 1.38A INDUCTOR POWER 22UH 1.38A SMD Fixed Inductors WE-PD Inductor 22uH 1kHz 1.38A CHOKE, SMD, 22UH Wurth 屏蔽 绕线贴片电感器, 22 μH ±20%, 1.38A Idc |
| Category |
Business
| Product | SMD Power Inductors | Other Names | 732-1180-2 |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Shielded | Impedance | :0.119ohm |
| Tolerance | ±20% | Inductance | 22µH |
| Range deg/s | :WURTH ELEKTRONIK - WE-PD Series | Test Frequency | 1kHz |
| Inductance Range | :± 20% | DC Resistance (DCR) | 190 mOhm Max |
| Current Rating (Max) | 1.38A | DC Resistance (DCR) (Max) | :0.19ohm |
| Frequency - Self Resonant | 18MHz | Current - Saturation (Isat) | :1.4A |
| Current Saturation - Series | 1.4A | Resistance - Initial (Ri) (Min) | 190 mOhms |
| Current - On State (It (RMS)) (Max) | :1.38A | ||
Mechanical
| Width | 7.3 mm | Weight | 0.0006 |
| Packaging | Tape & Reel (TR) | Shielding | Shielded |
| Core Material | Ferrite | Mounting Type | Surface Mount |
| Number of Pins | :2 | Package / Case | Non Standard |
| Material - Core | Ferrite | Primary Material | :Plastic |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) | Termination Style | SMD/SMT |
| Dimensions - Overall | :7.3mm x 7.3mm x 3.2mm | Height - Seated (Max) | 0.138" (3.50mm) |
Product Info
| Type | Wirewound | Series | WE-PD |
Environmental
| Operating Temperature | -40°C ~ 125°C | ||
Documents & Media
Similar Parts

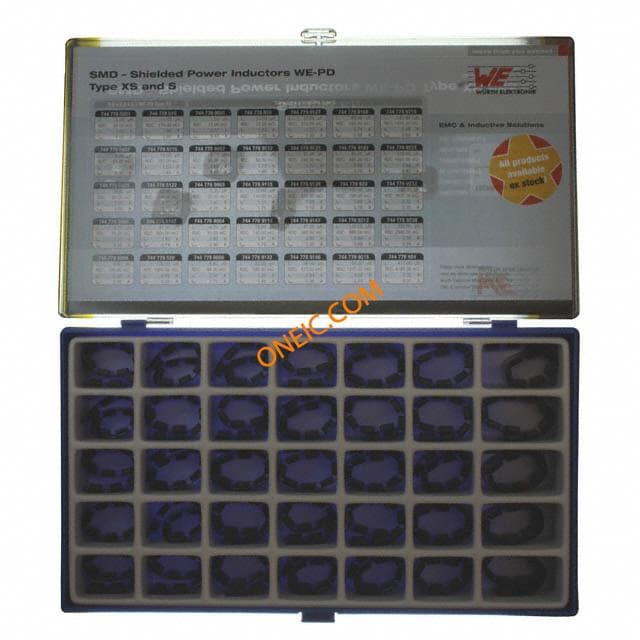

744778
Wurth Electronics
Inductor Kits & Accessories IND Kit PD Series S KIT INDUCTOR PD SERIES SMALL INDUCTORS, ASSORTMENT, SMDSMALL Wurth Elektronik 电感器套件, 套件包含6033/7332 WE-PD SMD 功率电感器

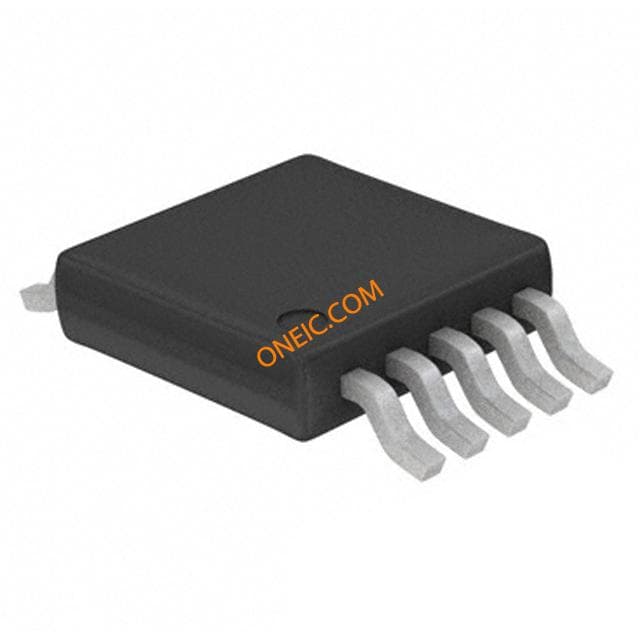

LT3502EMS#PBF
Analog Devices, Inc.
Conv DC-DC Single Step Down 3V to 40V 10-Pin MSOP IC REG BUCK ADJ 0.5A 10MSOP LT3502EMS#PBF, DC-DC Converter, 3.3V Step Down, 1.4MHz, 10-Pin MSOP IC, SW REG, 500MA, 10MSOP DC-DC converter; step up; Uin:3÷40V; Uout:0.8÷36V; 500mA; MSOP10 Linear Technology 直流-直流转换器, 降压, 500mA, 3 → 40 V输入, 1.4 MHz, 10针 MSOP封装

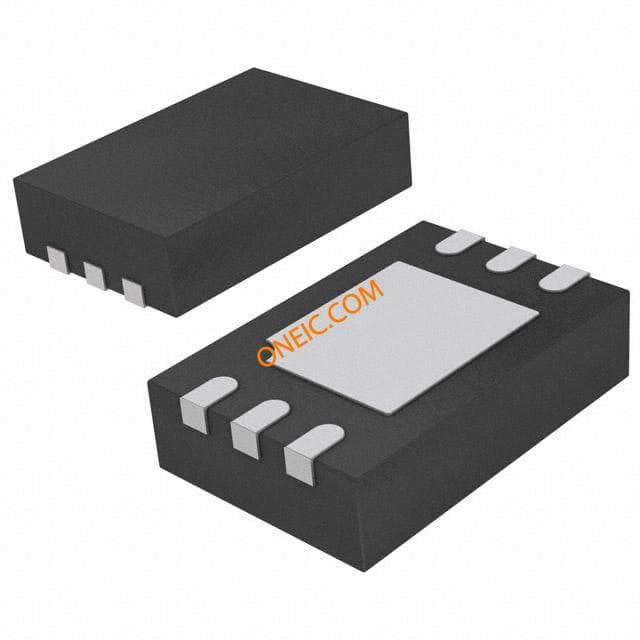

LT3493EDCB#TRMPBF
Analog Devices, Inc.
Conv DC-DC Single Step Down 3.6V to 36V 6-Pin DFN EP T/R IC REG BUCK ADJ 1.2A 6DFN Sw. Regulator 1.2A 750kHz Step-Down DFN6 IC, SW REG, 1.2A, 750KHZ, 6DFN Linear Technology 降压 开关稳压器, 1.2A, 0.78 → 50 V, 815 kHz, 6针 DFN封装

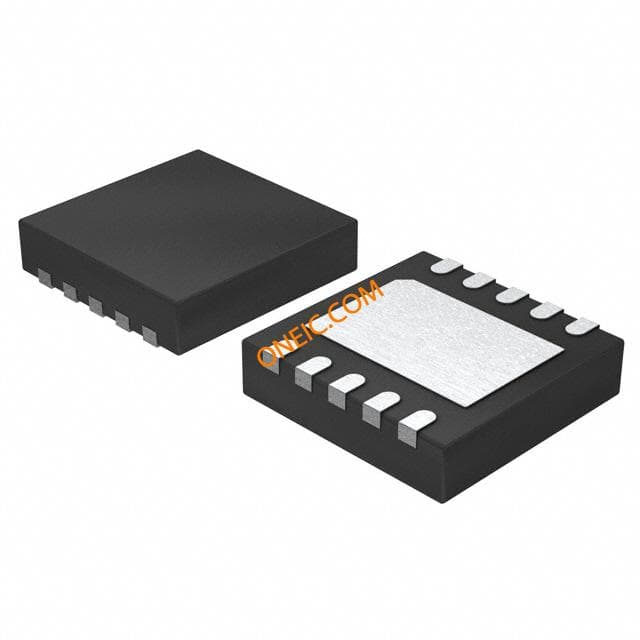

LT3686HDD#PBF
Analog Devices, Inc.
Conv DC-DC Single Step Down 3.6V to 37V 10-Pin DFN EP IC REG BUCK ADJ 1.2A 10-DFN IC, PWM STEP-DOWN DC/DC CONVERTER, DFN10 BUCK, 37V, 1.2A, 10DFN

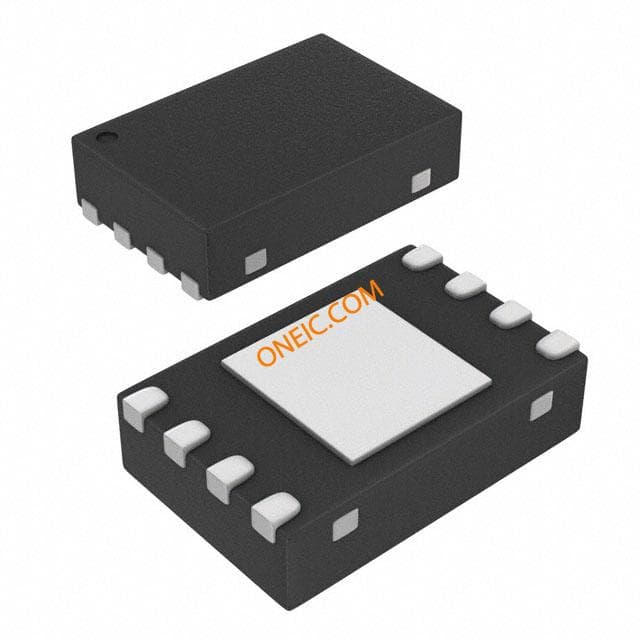

LT3502AIDC#TRMPBF
Analog Devices, Inc.
IC BUCK ADJ 0.5A 8DFN IC REG BUCK ADJ 0.5A 8DFN LT3502AIDC#TRMPBF, DC-DC Converter, 3.3V Step Down, 2.8MHz, 8-Pin DFN Conv DC-DC Single Step Down 3V to 40V 8-Pin DFN EP T/R IC, SW REG, 2.2MHZ, 500MA, 8DFN Linear Technology 直流-直流转换器, 降压, 500mA, 3 → 40 V输入, 2.8 MHz, 8针 DFN封装
3209885-M
MULTICORE (SOLDER)
SOLDER PASTE, 95.5/3.5/0.7, 217DEG, 500G

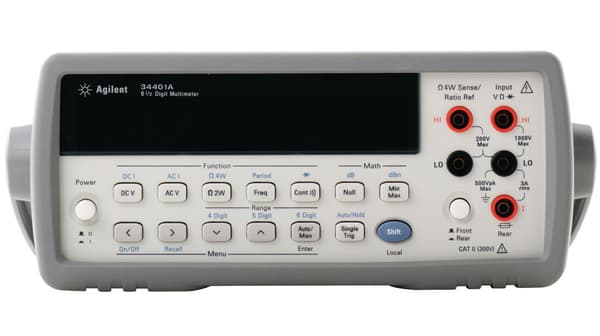

34401A
