7443321000
| Manufacturer | |
| Description | Fixed Inductors 10uH, 10mA DCR MAX=14.4, +/-20% INDUCTOR POWER 10UH 9.0A SMD Fixed Inductors WE-HCC Choke 10uH 9A 14.4mOhm INDUCTOR, 10UH, 9A, 20% Wurth WE-HCC 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 10 μH ±20%, 9A Idc |
| Category |
Business
| Product | High Current Inductors | Other Names | 732-2145-2 |
| Product Category | Fixed Inductors | Standard Package | 300 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Shielded | Tolerance | 20 % |
| Inductance | 10 uH | Range deg/s | :WURTH ELEKTRONIK - WE-HCC Series |
| Test Frequency | 100 kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 14.4 mOhm | Current Rating (Max) | 9 A |
| DC Resistance (DCR) (Max) | :0.0144ohm | Frequency - Self Resonant | 29 MHz |
| Current - Saturation (Isat) | :10A | Current Saturation - Series | 10A |
| Resistance - Initial (Ri) (Min) | 14.4 mOhms | Current - On State (It (RMS)) (Max) | :9A |
Mechanical
| Width | 11.4 mm | Weight | 0.006 |
| Packaging | Reel | Shielding | Shielded |
| Core Material | Ferrite | Mounting Type | Surface Mount |
| Number of Pins | :2 | Package / Case | 9.5 mm |
| Material - Core | Ferrite | Size / Dimension | 11.4 mm W x 12.1 mm L x 9.5 mm H |
| Termination Style | SMD/SMT | Dimensions - Overall | :12.1mm x 11.4mm x 9.5mm |
| Height - Seated (Max) | 0.394" (10.00mm) | ||
Product Info
| Type | SMD High Current Cube Inductor | Series | WE-HCC |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Similar Parts
744043
Wurth Electronics
Inductor Kits & Accessories WE-TPC Design Kit Medium Size KIT INDUCTOR TPC MED SIZES Wurth Elektronik Medium Power Chokes Inductor Design Kit, 15 Pieces INDUCTORS, ASSORTMENT, SMDMEDIUM Wurth Elektronik 15件 电感器套件, 套件包含中等功率扼流圈
744062
Wurth Electronics
Inductor Kits & Accessories WE-TPC Design Kit Large Size KIT INDUCTOR TPC LARGE SIZES Wurth Elektronik Large Power Chokes Inductor Design Kit, 10 Pieces INDUCTORS, ASSORTMENT, SMDLARGE Wurth Elektronik 10件 电感器套件, 套件包含大功率扼流圈
744028
Wurth Electronics
Inductor Kits & Accessories WE-TPC Design Kit Small Size KIT INDUCTOR TPC SMALL SIZES Wurth Elektronik Small Power Chokes Inductor Design Kit, 7 Pieces INDUCTORS, ASSORTMENT, SMDSMALL Wurth Elektronik 7件 电感器套件, 套件包含小功率扼流圈
744778
Wurth Electronics
Inductor Kits & Accessories IND Kit PD Series S KIT INDUCTOR PD SERIES SMALL INDUCTORS, ASSORTMENT, SMDSMALL Wurth Elektronik 电感器套件, 套件包含6033/7332 WE-PD SMD 功率电感器

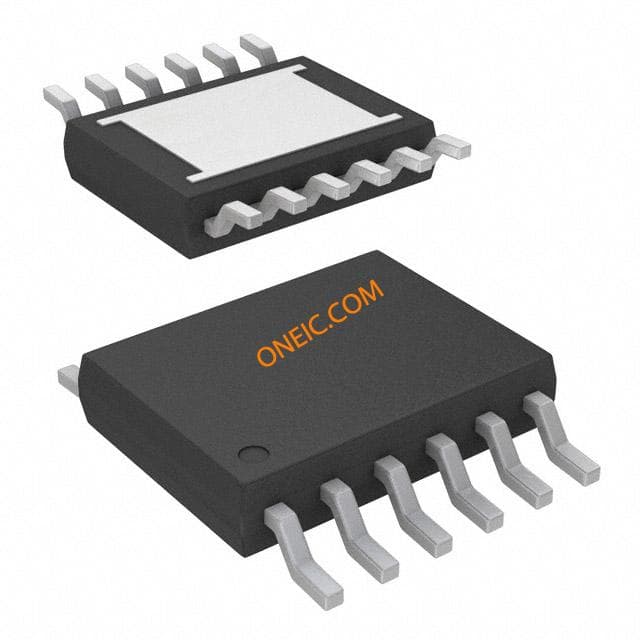

LT3759EMSE#PBF
