744311470
| Manufacturer | |
| Description | 固定インダクタ WE-HCI Inductor 4.7uH 100kHz 6A INDUCTOR POWER 4.7UH 6A SMD Inductor SMD high current WE-HCI 4.7uH Fixed Inductors WE-HCI Inductor 4.7uH 100kHz 6A INDUCTOR, SMD, HIGH CURRENT 4.7UH Wurth WE-HCI 系列 屏蔽 WE-Superflux芯材 绕线贴片电感器, 4.7 μH ±20%, 6A Idc |
| Category |
Business
| Product | High Current Inductors | Other Names | 732-1153-2 |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Shielded | Tolerance | ±20% |
| Inductance | 4.7µH | Range deg/s | :WURTH ELEKTRONIK - WE-HCI Series |
| Test Frequency | 100kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 19.5 mOhm | Current Rating (Max) | 6A |
| DC Resistance (DCR) (Max) | :0.0195ohm | Frequency - Self Resonant | 33MHz |
| Current - Saturation (Isat) | :7A | Current Saturation - Series | 7A |
| Resistance - Initial (Ri) (Min) | 19.5mΩ | Current - On State (It (RMS)) (Max) | :6A |
Mechanical
| Depth | 6.9mm | Width | 6.9 mm |
| Height | 3.8mm | Length | 7mm |
| Weight | 0.0016 | Packaging | Tape & Reel (TR) |
| Shielding | Shielded | Shield Type | Yes |
| Core Material | WE-Superflux | Mounting Type | Surface Mount |
| Number of Pins | :2 | Package / Case | Non Standard |
| Size / Dimension | 0.272" L x 0.272" W (6.90mm x 6.90mm) | Termination Style | SMD/SMT |
| Dimensions - Overall | :7mm x 6.9mm x 3.8mm | Height - Seated (Max) | 0.157" (4.00mm) |
Product Info
| Type | Wirewound | Series | WE-HCI |
Environmental
| Operating Temperature | -40°C ~ 150°C | ||
Documents & Media
Similar Parts

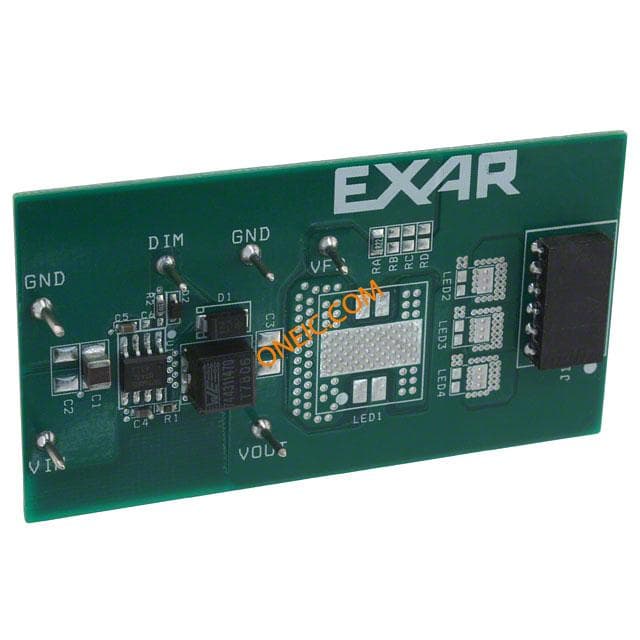

SP7600EB
Exar
LED Lighting Development Tools Eval Board for SP7600 Series Evaluation Board Is Designed To Help The User Evaluate The Performance Of The SP7600 For Use As A LED Driver EVAL BOARD FOR SP7600
SP7600EN2-L
Exar
LED Lighting Drivers Applications LED DRVR 1Segment 5V/9V/12V/15V/18V/24V 8-Pin HSOIC N EP Bulk IC LED DRVR PWM STP-DWN 8HNSOIC LED Driver,Buck,High Power,SOIC8N EP SP7600 Series 2 A 29 V 1.2 MHz Non-Sync. Buck High Power LED Driver - SOIC-8N LED 驱动器, 4.5 → 29 V, 8引脚 HSOIC封装

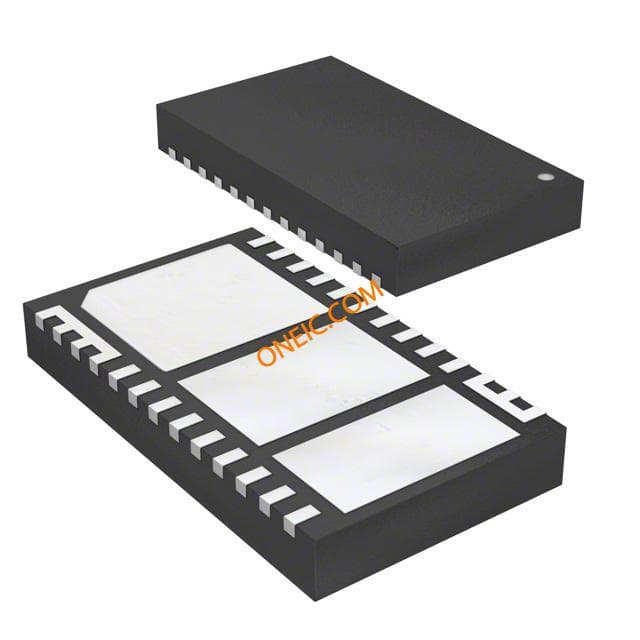

SP7652ER-L
