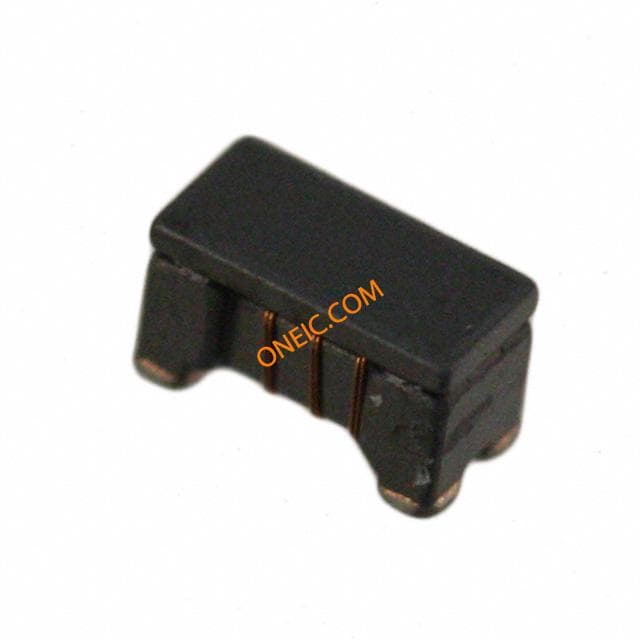

744232102
| Manufacturer | |
| Description | Common Mode Filters / Chokes 1000ohms, 230mA, 50V 1206 CHOKE COM MODE 1000 OHM .23A Common Mode Line Filter CNSW 1206 1kOhm Common Mode Filters / Chokes WE-CNSW Line Filter 1000ohm 100MHz 230mA NOISE SUPPRESSOR, SMD 1KOHM, 230MA Wurth WE-CNSW SMD 系列 铁氧体芯材 绕线贴片电感器 ±25%, 230mA Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Common Mode Inductors | Other Names | 732-1473-2 |
| Product Category | Common Mode Filters / Chokes | Standard Package | 2,000 |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Current | 230mA | Impedance | 1 kOhms |
| Tolerance | 25 % | Resistance | :1ohm |
| Filter Type | Data, Signal Line | Test Frequency | 100 MHz |
| Voltage Rating | :50V | DC Resistance (DCR) | 1 Ohm Max |
| Current Rating (Max) | 230 mA | Resistance - Initial (Ri) (Min) | 1 Ohms |
Mechanical
| Depth | 1.6mm | Width | 1.6 mm |
| Height | 1.8mm | Length | 3.2mm |
| Weight | 0.001376 oz | Packaging | Reel |
| Height (Max) | 0.083" (2.10mm) | Core Material | Ferrite |
| Mounting Type | Surface Mount | Connector Type | :SMD |
| Package / Case | 1206 (3216 metric) | Size / Dimension | 1.6 mm W x 3.2 mm L x 1.9 mm H |
| Termination Style | SMD/SMT | ||
Product Info
| Type | SMD Common Mode Line Filter | Series | WE-CNSW |
| Number of Lines | 2 | ||
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
