7440430022
| Manufacturer | |
| Description | Fixed Inductors 2.5A, 2.2uH DCR Max=0.023 +/-30% INDUCTOR POWER 2.2UH 2.5A SMD SMD Inductor WE-TPC 4828 2.2uH 2.35A Fixed Inductors WE-TPC Inductor 2.2uH 100kHz 2.5A INDUCTOR, POWER, 2.2UH, 30%, 5X5MM Wurth WE-TPC 系列 屏蔽 铁氧体芯材 绕线贴片电感器, 2.2 μH ±30%, 2.5A Idc |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | SMD Power Inductors | Other Names | 732-1095-2 |
| Product Category | Fixed Inductors | Standard Package | 500 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Shielded | Tolerance | 30 % |
| Inductance | 2.2 uH | Range deg/s | :WURTH ELEKTRONIK - WE-TPC Series |
| Test Frequency | 100 kHz | Inductance Range | :± 30% |
| DC Resistance (DCR) | 28 mOhm Max | Current Rating (Max) | 2.5 A |
| DC Resistance (DCR) (Max) | :0.028ohm | Frequency - Self Resonant | 100 MHz |
| Current - Saturation (Isat) | :2.35A | Current Saturation - Series | 2.35A |
| Resistance - Initial (Ri) (Min) | 0.028 Ohms | Current - On State (It (RMS)) (Max) | :2.5A |
Mechanical
| Depth | 4.8mm | Width | 4.8 mm |
| Height | 2.8mm | Length | 4.8mm |
| Weight | 0.009065 oz | Packaging | Reel |
| Shielding | Shielded | Shield Type | Yes |
| Core Material | Ferrite | Mounting Type | Surface Mount |
| Package / Case | 2.8 mm | Material - Core | Ferrite |
| Size / Dimension | 4.8 mm W x 4.8 mm L x 2.8 mm H | Termination Style | SMD/SMT |
| Dimensions - Overall | :4.8mm x 4.8mm x 2.8mm | Height - Seated (Max) | 0.118" (3.00mm) |
Product Info
| Type | SMD Shielded Tiny Power Inductor | Series | WE-TPC |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
Similar Parts

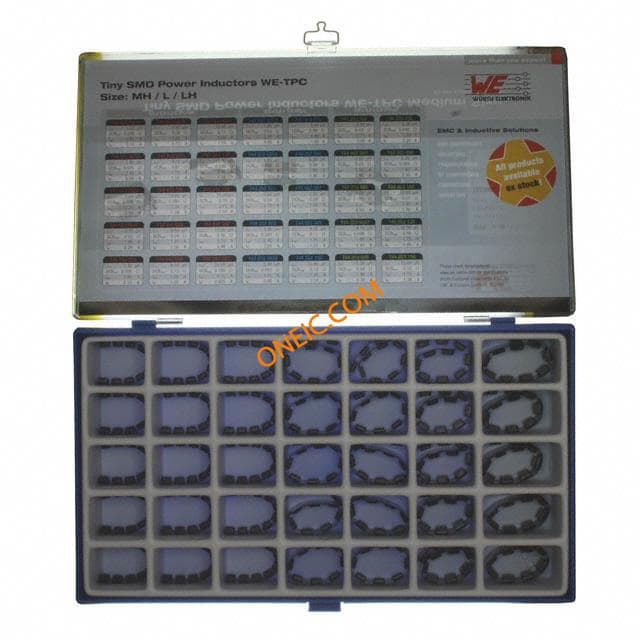

744043
Wurth Electronics
Inductor Kits & Accessories WE-TPC Design Kit Medium Size KIT INDUCTOR TPC MED SIZES Wurth Elektronik Medium Power Chokes Inductor Design Kit, 15 Pieces INDUCTORS, ASSORTMENT, SMDMEDIUM Wurth Elektronik 15件 电感器套件, 套件包含中等功率扼流圈
$762.9600
Details

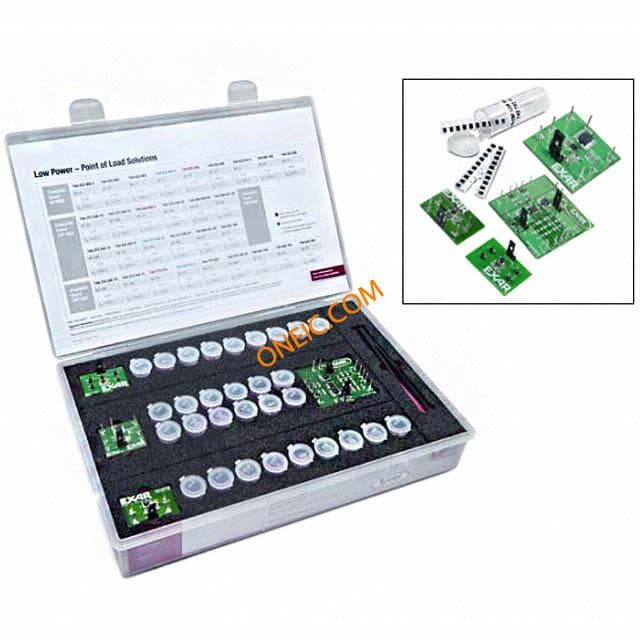

XRPWRKIT-LWP-1
