点击放大查看
742792651
| Manufacturer | |
| Description | EMI Filter Beads, Chokes & Arrays WE-CBF Bead 100MHz 600ohm 1000mA FERRITE BEAD 600 OHM 1.0A 0603 WE-CBF Ferrite Bead 0603 600Ohm 1000mA EMI Filter Beads, Chips & Arrays WE-CBF Bead 100MHz 600ohm 1000mA FERRITE, BEAD, 0603, 0.2OHM, 1A Wurth Elektronik WE-CBF 系列 铁氧体磁珠, 600Ω阻抗 @ 100 MHZ, 0603封装, 适用于汽车、计算机外围设备和更多 |
| Category |
Business
| Product | Ferrite Chip Beads | Other Names | 732-1593-2 |
| Product Category | EMI Filter Beads, Chips & Arrays | Standard Package | 4,000 |
| Factory Pack Quantity | 4000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049011 | ||
Electrical
| Impedance | 600 Ohms | Tolerance | ±25% |
| Filter Type | Differential Mode - Single | Test Frequency | 100 MHz |
| Current Rating - DC | :1A | DC Resistance (DCR) | 200 mOhm Max |
| Current Rating (Max) | 1A | Impedance @ Frequency | 600 Ohm @ 100MHz |
| DC Resistance (DCR) (Max) | :0.2ohm | Resistance - Initial (Ri) (Min) | 200mΩ |
Mechanical
| Depth | 0.8mm | Width | 0.8 mm |
| Height | 0.8mm | Length | 1.6mm |
| Weight | 0.000141 oz | Packaging | Tape & Reel (TR) |
| Height (Max) | 0.039" (1.00mm) | Core Material | Ferrite |
| Mounting Type | Surface Mount | Package / Case | 0603 (1608 Metric) |
| Mounting Feature | :SMD | Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Termination Style | SMD/SMT | ||
Product Info
| Series | WE-CBF | ||
Environmental
| Operating Temperature | +125°C | ||
Documents & Media
Similar Parts
651005136521
Wurth Electronics
USB Connectors Interface Connectors miniUSB B 5POS RCPT CONN MINI USB 5POS HORIZ T/H WR-COM USB Connector Mini horizontal CONNECTOR, MINI USB B, RECEPT, THT, R/A Wurth Elektronik WR-COM 系列 直角, 表面安装 B 型 微型 USB 连接器, 插座, 30 V 交流, 1A
614004135023
Wurth Electronics
USB Connectors Interface Connectors RJ11 Cat3 6POS CONN USB 4PINS TYPE A VERT WR-COM USB Connector A vertical USB A, RECEPTACLE, THT, VERTICAL Wurth Elektronik WR-COM 系列 A 型 USB 直 插座, 通孔, 30 V 交流, 1.5A
65100516121
Wurth Electronics
USB Connectors Interface Connectors miniUSB B 5POS RCPT CONN COM TYPE B MINI USB SMD 5P WR-COM USB Connector Mini horizontal SMD USB Connectors WR-COM USB Type B 5P RCPT MiniUSB MINI USB TYPE B, RECEPTACLE Wurth Elektronik WR-COM 系列 直角, 表面安装 B 型 微型 USB 连接器, 插座, 30 V 交流, 1A
651005136421
Wurth Electronics
USB Connectors Interface Connectors miniUSB B 5POS RCPT CONN MINI USB 5PIN VERT T/H WR-COM USB Connector Mini vertical MINI USB TYPE B, RECEPTACLE, VERT Wurth Elektronik WR-COM 系列 直向 通孔安装 B 型 微型 USB 连接器, 插座, 30 V 交流, 1.8A
614004134726
Wurth Electronics
USB Connectors Interface Connectors RJ25 Cat3 SHLD 6POS CONN USB 4POS TYPE A UP-RIGHT WR-COM USB Connector A up-right USB TYPE A, RECEPTACLE, FLAG Wurth Elektronik WR-COM 系列 A 型 USB 2.0 直角 插座, 通孔, 30 V, 1.5A
614008235023
Wurth Electronics
USB Connectors Interface Connectors RJ45 Cat5e 8POS CONN USB 2X4POS TYPE A VERT WR-COM USB Connector 2x1 A vertical USB TYPE A, RECEPTACLE, VERT, DUAL Wurth Elektronik WR-COM 系列 A 型 USB 直 插座, 30 V 交流, 1.5A
61400416121
Wurth Electronics
USB Connectors Interface Connectors USB B CONN 4 RCPT CONN COM TYPE B USB HORZ 4POS WR-COM USB Connector B horizontal USB Connectors WR-COM USB Type B 4P CONN Female CONNECTOR, USB B, RECEPTACLE, PCB, R/A Wurth Elektronik WR-COM 系列 直角 母 B 型 USB, 印刷电路板安装, 30 V 交流, 1.5A
61400416021
Wurth Electronics
USB Connectors Interface Connectors USB A CONN 4 RCPT CONN COM TYPE A HORZ USB 4POS WR-COM USB Connector A horizontal USB Connectors WR-COM USB Type A 4P CONN Female RECEPTACLE, USB, TYPE A, THT, R/A Wurth Elektronik WR-COM 系列 A 型 USB 直角 插座, 30 V 交流, 1.5A
61400826021
Wurth Electronics
USB Connectors Interface Connectors USB A CONN 8 RCPT CONN COM TYPE A USB DUAL 2X4POS WR-COM USB Connector 2x1 A horizontal USB Connectors WR-COM USB Type A 8P CONN Female USB TYPE A, RECEPTACLE, DUAL Wurth Elektronik WR-COM 系列 A 型 USB 直 插座, 通孔, 30 V, 1.5A

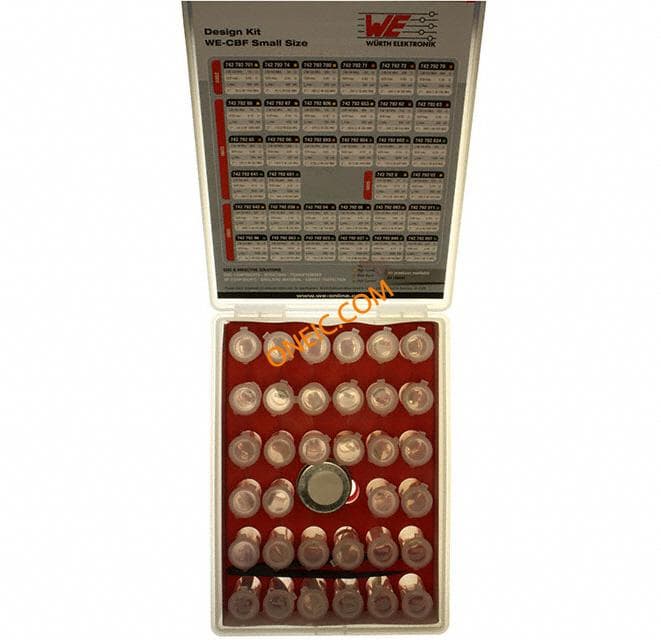

742790
