74279242
| Manufacturer | |
| Description | EMI Filter Beads, Chokes & Arrays 150ohms @ 100Mhz FERRITE BEAD 150 OHM .20A 1806 WE-CBF Ferrite Bead 1806 150Ohm 200mA EMI Filter Beads, Chips & Arrays WE-CBF Bead 100MHz 150ohm FERRITE BEAD, 0.5 OHM, 0.2A, 1806 Wurth Elektronik WE-CBF 系列 铁氧体磁珠, 150Ω阻抗 @ 100 MHZ, 1806封装, 适用于抑制元件 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Chip Ferrite Beads | Other Names | 732-1639-2 |
| Product Category | EMI Filter Beads, Chokes & Arrays | Standard Package | 2,000 |
| Factory Pack Quantity | 2000 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049011 | ||
Electrical
| Impedance | 150 Ohms | Tolerance | 25 % |
| Resistance | :0.5ohm | Filter Type | Differential Mode - Single |
| Test Frequency | 100 MHz | Current Rating - DC | :200mA |
| DC Resistance (DCR) | 500 mOhm Max | Current Rating (Max) | 200 mA |
| Impedance @ Frequency | 150 Ohm @ 100MHz | DC Resistance (DCR) (Max) | :0.5ohm |
| Resistance - Initial (Ri) (Min) | 0.5 Ohms | ||
Mechanical
| Depth | 1.6mm | Width | 1.6 mm |
| Height | 1.6mm | Length | 4.5mm |
| Weight | 0.002081 oz | Packaging | Reel |
| Height (Max) | 0.071" (1.80mm) | Core Material | Ferrite |
| Mounting Type | Surface Mount | Package / Case | 1806 (4516 metric) |
| Mounting Feature | :SMD | Size / Dimension | 1.6 mm W x 4.5 mm L x 1.6 mm H |
| Termination Style | SMD/SMT | ||
Product Info
| Series | WE-CBF | ||
Environmental
| Operating Temperature | - 55 C to + 125 C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
PDF Document
Similar Parts
BLM41AF151SN1L
murata electronics
EMI Filter 0.2A Flat Style SMD Ferrite Beads Chip 150Ohm 25% 100MHz 200mA 500mOhm DCR 1806 Embossed T/R FERRITE CHIP 150 OHM 1806 Ferrite bead 1806 SMD 150R 200mA EMI Filter Beads, Chips & Arrays 1806 150 OHM FERRITE BEAD, 0.5OHM, 200MA, 1806 Ferrite: bead; Imp.@ 100MHz:150Ω; Mounting: SMD; 0.2A; Case:1806 Ferrite SMD 0.2 A 0.5 Ohm 1806, BLM41AF151SN1L, Murata Murata BLM41AF 系列 铁氧体磁珠, 1806封装, 适用于电磁干扰抑制，通用电子 BLM41AF 150R 200mA Rdc=0,5R
$1.2308
Details

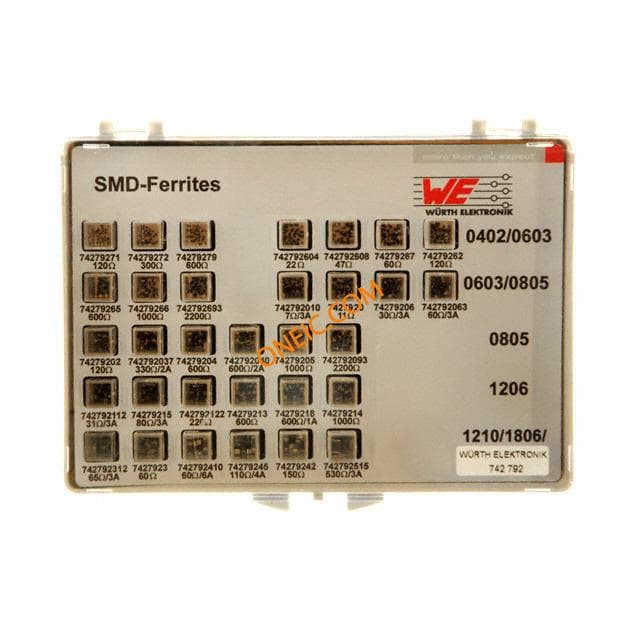

742792
