点击放大查看
74271222
| Manufacturer | |
| Description | EMI/RFI Suppressors & Ferrites STAR-TEC Snap 25MHz 145ohm FERR RD CBL SNAP 10.5-12.5MM GRY STAR-TEC snap ferrite 10.5-12.5mm cable Ferrite Clamp On Cores STAR-TEC Snap 25MHz 145ohm FERRITE CORE, SPLIT, 12.5MM, 265OHM Wurth Elektronik STAR-TEC 系列 可开启 铁氧体套管 , 42.2 x 28.8 x 33.5mm, 13mm孔径, 应用于电磁干扰抑制 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 732-1507 | Product Category | Ferrite Clamp On Cores |
| Standard Package | 140 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85049011 | ||
Electrical
| Impedance | 265 Ohm | Test Frequency | 100MHz |
| Frequency - Max | :1GHz | Frequency - Min | :1MHz |
| Frequency Range | :1MHz to 1GHz | Impedance @ Frequency | :265ohm |

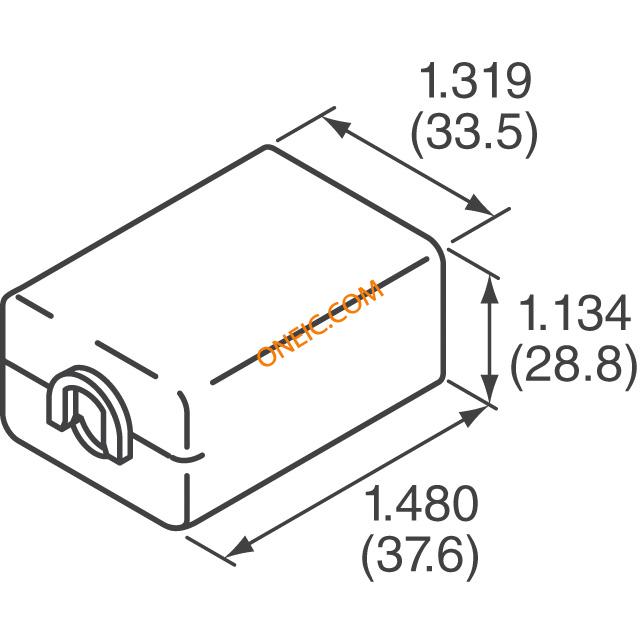

Mechanical
| Depth | 28.8mm | Shape | Square |
| Width | :33.5mm | Height | :42.2mm |
| Length | 0.590" L (15.00mm) | Weight | 2.774297 oz |
| Diameter | 13mm | Material | 4 W 620 |
| Packaging | Bulk | Case Color | :Grey |
| Height (Max) | 33.5mm | Cable Opening | Yes |
| Mounting Type | Free Hanging | Package / Case | :Split Core |
| Inner Dimension | 0.492" Dia (12.50mm) | Material Finish | :- |
| Outer Dimension | 1.318" Dia (33.50mm) | Width - Overall | 33.5 mm |
| Length - Overall | :42.2mm | Mounting Feature | :Snap On Cable |
| Width - Outer Edges | 42.2mm | Diameter - Outside, Non-Expanded | 37.6 mm |
Product Info
| Type | Round | Design | Hinged (Snap On), Key Required |
| Series | :STAR-TEC | Key Type | Yes |
| Product Type | Cable Single | Number of Axes | 1 |
| Application Specifics | EMI Suppression | ||
Environmental
| Operating Temperature | - 25 C to + 105 C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
