点击放大查看
74271221
| Manufacturer | |
| Description | EMI/RFI Suppressors & Ferrites Z=270ohms @100Mhz KEY # = 710-74271 Ferrite Core STAR-TEC with Safety Lock 42.2mm 33.6mm 29.5mm General Application FERR RND CBL SNAP 8.5-10.5MM GRY STAR-TEC snap ferrite 8.5-10.5mm cable Ferrite Clamp On Cores STAR-TEC Snap 25MHz 151ohm FERRITE CORE, SPLIT, 10.5MM Wurth Elektronik STAR-TEC 系列 可开启 铁氧体套管 , 33.6 x 29.5 x 37.7mm, 13mm孔径 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Clamp-On Ferrite Suppressors | Other Names | 732-1506 |
| Product Category | EMI/RFI Suppressors & Ferrites | Standard Package | 140 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85049011 |
Electrical
| Impedance | 270 Ohms | Tolerance | 25 % |
| Test Frequency | 100 MHz | Frequency - Max | :1GHz |
| Frequency - Min | :1MHz | Frequency Range | :1MHz to 1GHz |
| Impedance @ Frequency | :270ohm | ||
Mechanical
| Depth | 33.6mm | Shape | Square |
| Width | 33.6 mm | Height | :42.2mm |
| Length | 0.590" L (15.00mm) | Weight | 2.831335 oz |
| Diameter | 13mm | Material | 4 W 620 |
| Packaging | Bulk | Case Color | :Grey |
| Height (Max) | 29.5mm | Cable Opening | Yes |
| Mounting Type | Free Hanging | Package / Case | 29.5 mm |
| Inner Dimension | 0.413" Dia (10.50mm) | Material Finish | :- |
| Outer Dimension | 1.161" Dia (29.50mm) | Width - Overall | 33.6 mm |
| Length - Overall | :42.2mm | Mounting Feature | :Snap On Cable |
| Size / Dimension | 33.6 mm W x 37.7 mm L x 29.5 mm H | Termination Style | Sleeve Snap |
| Width - Outer Edges | 37.7mm | Diameter - Outside, Non-Expanded | 37.7 mm |
Product Info
| Type | STAR-TEC with Safety Lock | Design | Hinged (Snap On), Key Required |
| Series | :STAR-TEC | Key Type | Yes |
| Product Type | Cable Single | Application Specifics | General Application |
Environmental
| Operating Temperature | - 25 C to + 105 C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
Similar Parts
7427711
Wurth Electronics
EMI/RFI サプレッサおよびフェライト STAR-CLIP MNT BKT for 74271112 Ferrite Cores & Accessories Mounting Bracket For 74271112 STAR-TEC MOUNTING CLIP Wurth Elektronik 星型夹 , 26 x 16 x 18.5mm
$9.0600
Details

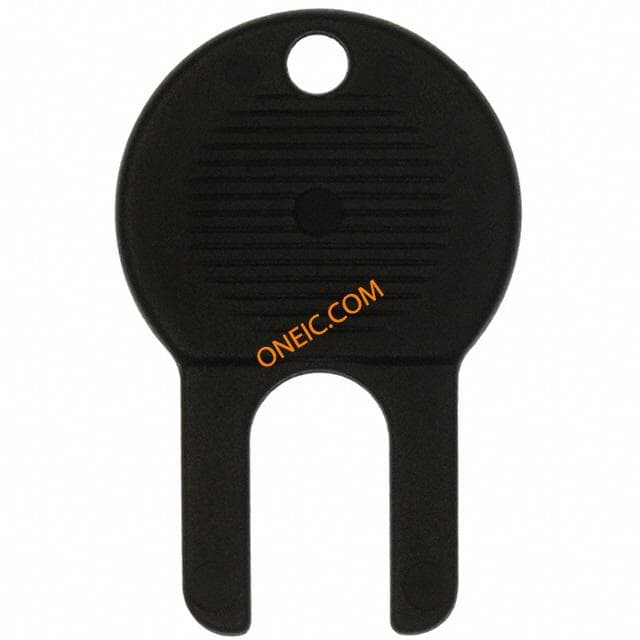

74271
