649010113322

Manufacturer	Würth Elektronik GmbH & Co. KG
Description	Headers & Wire Housings WR-MPC4 RECPTL MICRO 4.2mm PWR DUAL 10POS RECEPTACLE MICRO PWR DUAL 10POS RECEPTACLE, 4.2MM, DUAL, FREE, 10WAY Wurth Elektronik WR-MPC4 系列 2 行 4.2mm 节距 10 路直母电缆安装 PCB 连接器外壳
Category	Connector SolutionsRectangular ConnectorsPower Hybrid Rectangular Connectors

对参数有疑问？问 AI 助手

Business

Other Names

732-1946

Standard Package

500

Compliance

RoHS	RoHS Compliant	SVHC	:No SVHC (20-Jun-2013)
Tariff No	85366930	Material Flammability Rating	UL 94 V-0

Electrical

Voltage Rating	600 V	Current Rating (Max)	9 A
Insulation Resistance	1000 MOhms

Mechanical

Color	White	Pitch	0.165" (4.20mm)
Weight	0.035	Packaging	Bulk
Row Spacing	0.165" (4.20mm)	Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Fastening Type	Latch Lock	Number of Rows	2
Housing Material	Nylon	1st Contact Gender	Socket (Female)
Number of Contacts	10	Contact Termination	Crimp
Number of Positions	10

Product Info

Note	Contacts Not Provided	Gender	:Socket
Series	WR-MPC4	Product Type	Receptacles / Sockets - Housings
Application Specifics	Wire-to-Board

Environmental

Operating Temperature

- 40 C to + 105 C

Documents & Media

Online Document

Online Document

Online Document

PDF Document

PDF Document

Mini Pwr Conn 4.20MM WR-MPC4

PDF Document

6490xx113322 Drawing

PDF Document

6490xx113322.pdf

Similar Parts

64901021822

Wurth Electronics Inc

CONN PLUG HOUS 10POS DUAL 4.2MM PLUG, 4.2MM, DUAL, PANEL MNT, 10WAY Wurth Elektronik WR-MPC4 系列 2 行 4.2mm 节距 10 路直公面板安装 PCB 连接器外壳

$3.6652

Details

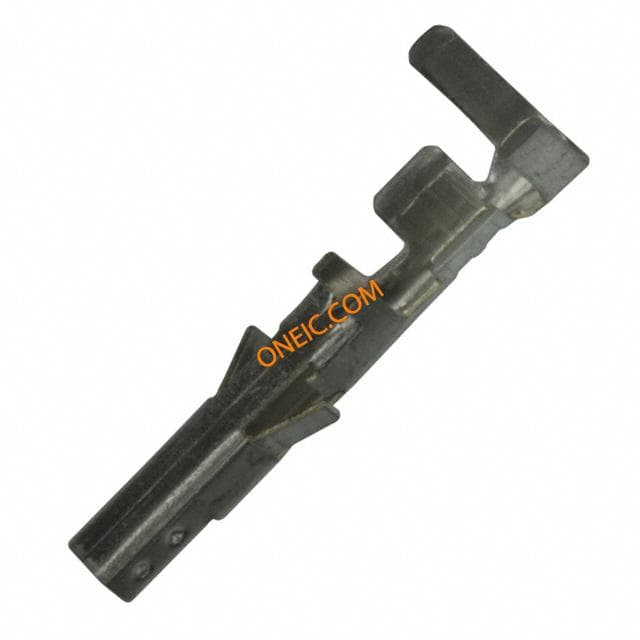

64900113722DEC

Wurth Electronics Inc

TERMINAL FEM MINI 16-22AWG CONTACT, SOCKET, 22-16 AWG, CRIMP

$0.6528

Details

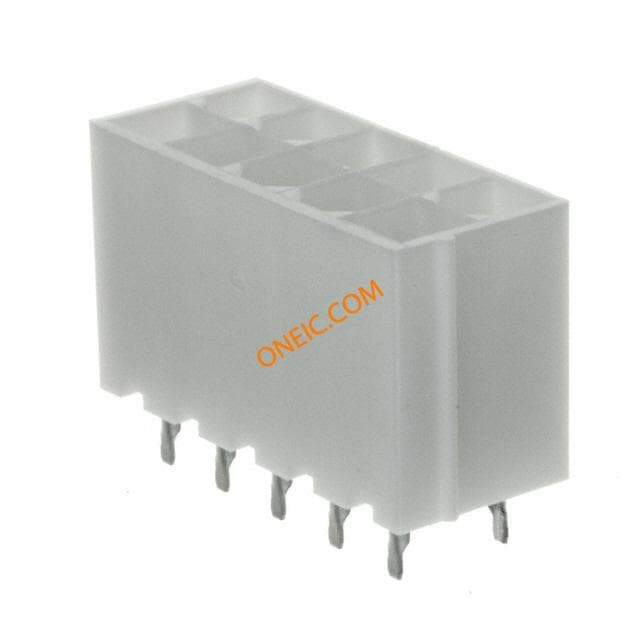

64901021122

Wurth Electronics Inc

HEADER MALE 4.20MM DUAL VERT 10P Headers & Wire Housings WR-MPC4 4.20mm HDR 10P Dual Vertical HEADER, 4.2MM, DUAL, VERT, 10WAY Wurth Elektronik WR-MPC4 系列 4.2mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 6 → 9A , 通孔

$5.0524

Details

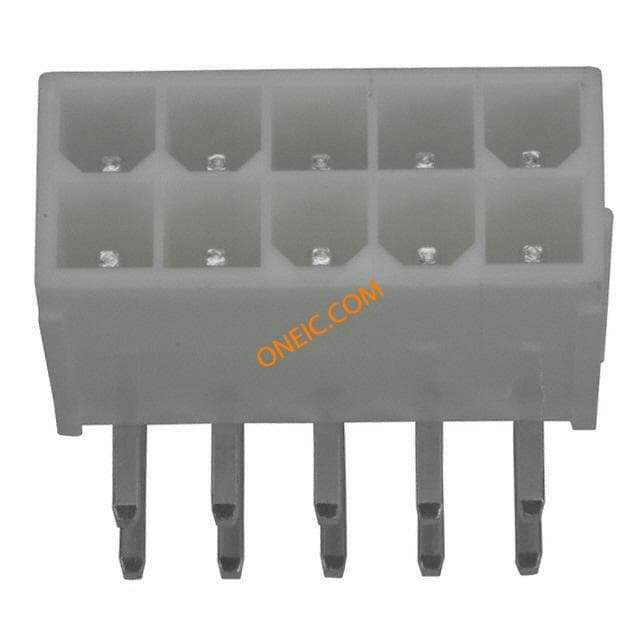

64901029522
