点击放大查看
750107
| Manufacturer | |
| Description | BOARD EVAL FOR LT3748 LT3748, 12W FLYBACK CONV, DEMO BOARD |
| Category |
Business
| Other Names | 732-3305 | Standard Package | 1 |
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85423990 |
Electrical
| Core Type | :- | Power - Output | 12W |
| Current - Output | 1A | Number of Elements | :- |
| Regulator Topology | Flyback | Voltage - Input (Min) | 12V |
Mechanical
| Weight | 0.5 | Board Thickness | Fully Populated |
Product Info
| Contents | Board | Features | :- |
| Kit Contents | :- | Main Purpose | DC/DC, Step Down |
| Manufacturer | :- | Outputs and Type | 1, Isolated |
| Utilized IC / Part | LT3748 | Chipset Manufacturer | :Linear Technology |
| Application Specifics | :- | ||
Documents & Media
Similar Parts
LT3748IMS#TRPBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP T/R IC REG CTRLR FLYBK ISO CM 16MSOP
LT3748EMS#PBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP IC REG CTRLR FLYBK ISO CM 16MSOP 100V Isolated Flyback Controller MSOP16 DC/DC, FLYBACK, 100V, 1.9A, ADJ, 16MSOP Linear Technology 直流-直流控制器, 1.9A, 100 V 反激式, 16针 MSOP封装
LT3748HMS#TRPBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP T/R IC REG CTRLR FLYBK ISO CM 16MSOP
LT3748IMS#PBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP IC REG CTRLR FLYBK ISO CM 16MSOP 100V Isolated Flyback Controller MSOP16 FLYBACK, ISOLATED, 100V, 16MSOP Linear Technology 直流-直流控制器, 1.9A, 100 V 反激式, 16针 MSOP封装
LT3748EMS#TRPBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP T/R IC REG CTRLR FLYBK ISO CM 16MSOP
LT3748HMS#PBF
Analog Devices, Inc.
Soft Sw PWM Cntrlr 1-OUT Flyback Controller 16-Pin MSOP IC REG CTRLR FLYBK ISO CM 16MSOP IC, DC-DC CONV, MSOP16 Linear Technology 直流-直流控制器, 150mA, 100 V 反激式, 12针 MSOP封装

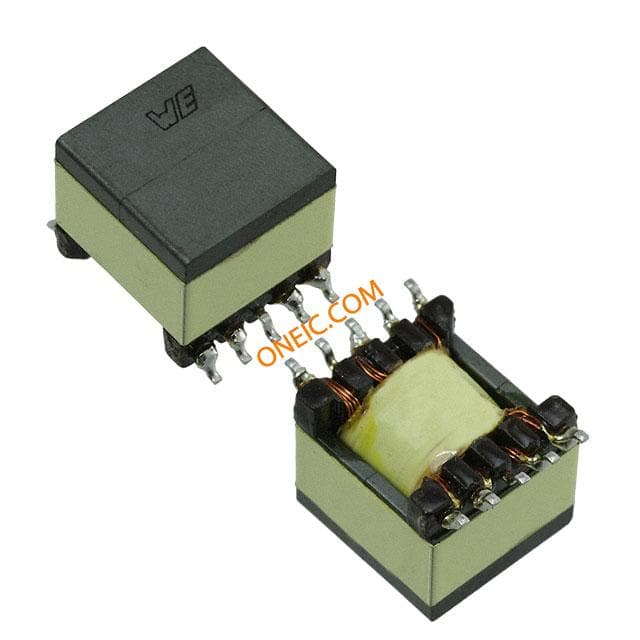

750311439
