748421245
| Manufacturer | |
| Description | BALUN EMBER351 & 357 0805 SMD SMD LC-Balun WE-BAL 0805 2.4GHz 1000Ohm Signal Conditioning WE-BAL Chip Balun 50ohm Wurth Elektronik 100Ω 表面贴装 芯片平衡-不平衡变换器 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Baluns | Other Names | 732-2230-2 |
| Product Category | Signal Conditioning | Standard Package | 4,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Impedance | 100 Ohms | Insertion Loss | 0.54 dB |
| Frequency - Max | 2500MHz | Frequency Range | 2.4GHz ~ 2.5GHz |
| Phase Difference | 180° ±10 | Insertion Loss (Max) | 1.0dB |
| Ratio - Input:Output | 1.43 | Impedance - Unbalanced/Balanced | 50 / 100 Ohm |

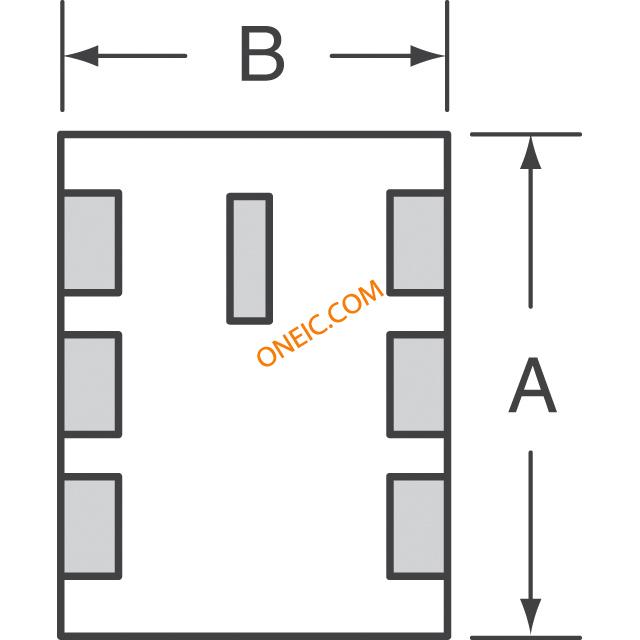

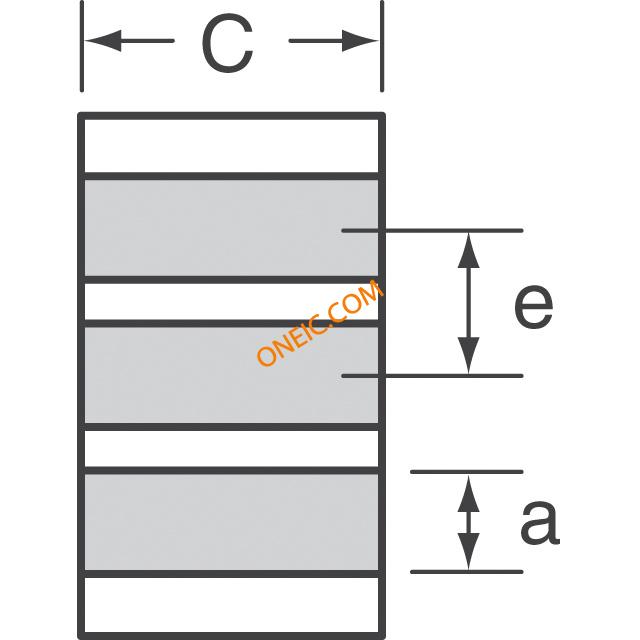

Mechanical
| Width | 1.25mm | Length | 2mm |
| Packaging | Tape & Reel (TR) | Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric) | Size / Dimension | 2 x 1.25 x 0.85mm |
| Termination Style | SMD/SMT | ||
Product Info
| Type | Chip Balun | Other Specifications | 2400MHz |
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
