7447797820
| Manufacturer | |
| Description | INDUCTOR POWER 8.2UH 4.8A SMD CHOKE, 1045 SIZE, 8.2UH |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 732-2213-2 | Standard Package | 500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85045095 | ||
Electrical
| Core Type | :Shielded | Tolerance | ±20% |
| Inductance | 8.2µH | Range deg/s | :WURTH ELEKTRONIK - WE-PDF Series |
| Test Frequency | 100kHz | Inductance Range | :± 20% |
| DC Resistance (DCR) | 28.6 mOhm Max | Current Rating (Max) | 5.05A |
| DC Resistance (DCR) (Max) | :0.0286ohm | Frequency - Self Resonant | 28MHz |
| Current - Saturation (Isat) | :5.8A | Current Saturation - Series | 5.8A |
| Inductance Frequency - Test | :100kHz | Current - On State (It (RMS)) (Max) | :5.05A |
Mechanical
| Depth | :10.2mm | Width | :10.2mm |
| Length | :4.5mm | Weight | 0.0032 |
| Packaging | Tape & Reel (TR) | Shielding | Shielded |
| Mounting Type | Surface Mount | Number of Pins | :2 |
| Package / Case | Non Standard | Material - Core | Metal Composite |
| Size / Dimension | 0.402" L x 0.402" W (10.20mm x 10.20mm) | Dimensions - Overall | :10.2mm x 10.2mm x 4.5mm |
| Height - Seated (Max) | 0.177" (4.50mm) | ||
Product Info
| Type | Wirewound | Series | :WE-PDF |
Environmental
| Operating Temperature | -40°C ~ 150°C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
Similar Parts

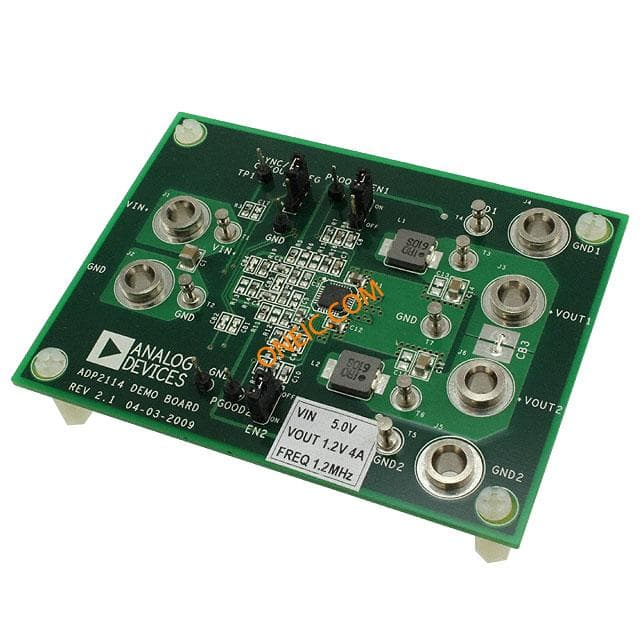

ADP2114-2PH-EVALZ
