690367280676
| Manufacturer | |
| Description | CONN 2.54MM SMD FEMALE POLAR 6P Wurth Elektronik 6903 Series 2.54, 1.27mm 6 Way 2 Row Right Angle PCB Socket Surface Mount Board to Board Headers & Wire Housings WR-MM CONN 2.54MM SMD FEMALE POLAR 6P SOCKET, 2.54/1.27MM, SMT, 6WAY Wurth Elektronik 6903 系列 2行 6路 直角 1.27 mm, 2.54 mm节距 表面贴装 印刷电路板插座, 板对板 |
| Category |
Business
| Other Names | 732-1965-2 | Standard Package | 800 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :WURTH ELEKTRONIK - WR-MM Series | Voltage Rating | 100 V ac |
| Current Rating (Max) | 1.5A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Red | Pitch | 0.100" (2.54mm) |
| Weight | 0.0006 | Packaging | Tape & Reel (TR) |
| Row Spacing | 0.059" (1.50mm) | Termination | Solder |
| Contact Type | Female Socket | Mounting Type | Surface Mount |
| Connector Type | Receptacle | Contact Finish | Tin |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | Polyamide | Termination Style | SMD |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 6 |
| Contact Termination | :Surface Mount Vertical | Number of Positions | 6 |
Product Info
| Type | Board to Board | Gender | :Socket |
| Series | 6903 | Product Type | Connectors |
| Application Specifics | Wire-to-Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | - 40 C to + 105 C | ||
Documents & Media
Similar Parts

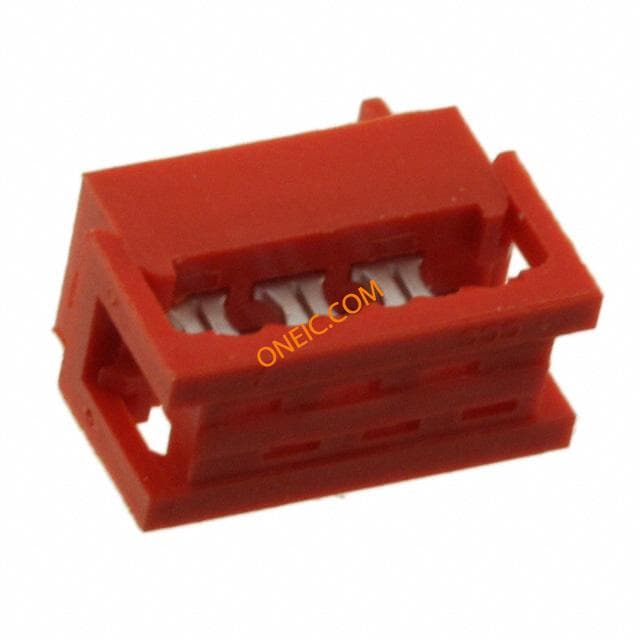

690157000672
Wurth Electronics Inc
CONN 2.54MM IDC MALE RED 6POS 6 way male connector IDC 2.54mm Headers & Wire Housings WR-MM CONN 2.54MM IDC MALE RED 6POS PLUG, 2.54/1.27MM, FREE, IDC, 6WAY Wurth Elektronik 6901 系列 2行 6路 1.27 mm, 2.54 mm节距 公 IDC 连接器 , 电缆安装
690357100672
Wurth Electronics Inc
CONN 2.54MM MALE STR PCB TH 6P Wurth Elektronik 6903 Series 1.27, 2.54mm Pitch 6 Way 2 Row Straight PCB Header, Solder Termination, 1.5A Headers & Wire Housings WR-MM CONN 2.54MM MALE STR PCB TH 6P PLUG, 2.54/1.27MM, 6WAY Wurth Elektronik WR-MM MiniModule 系列 1.27 mm, 2.54 mm节距 6路 (2排) 直 PCB 针座, 焊接端接, 1.5A , 表面安装

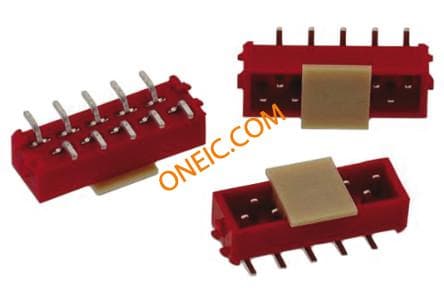

690357280676
