690157000872
| Manufacturer | |
| Description | CONN 2.54MM IDC MALE RED 8POS 8 way male connector IDC 2.54mm Headers & Wire Housings WR-MM CONN 2.54MM IDC MALE RED 8POS PLUG, 2.54/1.27MM, FREE, IDC, 8WAY Wurth Elektronik 6901 系列 2行 8路 1.27 mm, 2.54 mm节距 公 IDC 连接器 , 电缆安装 |
| Category |
Business
| Other Names | 732-1990-5 | Standard Package | 42 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :WURTH ELEKTRONIK - WR-MM Series | Voltage Rating | 100 V ac |
| Current Rating (Max) | 1A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Red | Pitch | 0.100" (2.54mm) |
| Weight | 0.0006 | Packaging | Tube |
| Wire Type | Ribbon Cable | Wire Gauge | 28 AWG |
| Row Spacing | 0.059" (1.50mm) | Termination | IDC |
| Contact Type | Male Pin | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug | Contact Finish | Tin |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | PBT | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 8 | Contact Termination | :IDC / IDT |
| Number of Positions | 8 | ||
Product Info
| Gender | Male | Series | 6901 |
| Features | Feed Through | Product Type | Connectors |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts

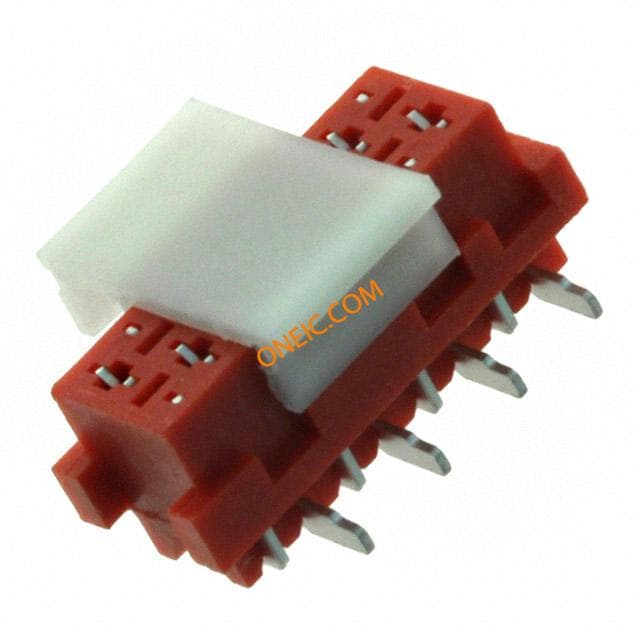

690367280876
Wurth Electronics Inc
CONN 2.54MM SMD FEMALE POLAR 8P Wurth Elektronik 6903 Series 2.54, 1.27mm 8 Way 2 Row Right Angle PCB Socket Surface Mount Board to Board Headers & Wire Housings WR-MM CONN 2.54MM SMD FEMALE POLAR 8P SOCKET, 2.54/1.27MM, SMT, 8WAY Wurth Elektronik 6903 系列 2行 8路 直角 1.27 mm, 2.54 mm节距 表面贴装 印刷电路板插座, 板对板

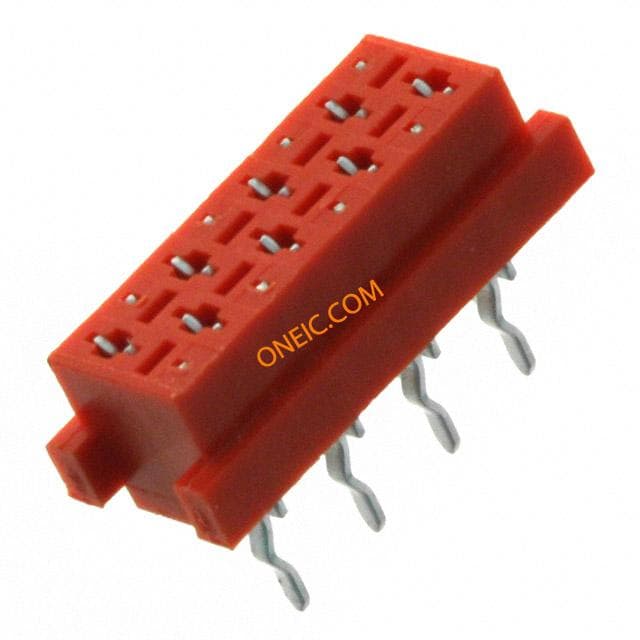

690367180872
