690157000472
| Manufacturer | |
| Description | CONN 2.54MM IDC MALE RED 4POS 4 way male connector IDC 2.54mm Headers & Wire Housings WR-MM CONN 2.54MM IDC MALE RED 4POS PLUG, 2.54/1.27MM, FREE, IDC, 4WAY Wurth Elektronik 6901 系列 2行 4路 1.27 mm, 2.54 mm节距 电缆安装 公 IDC 连接器 |
| Category |
Business
| Other Names | 732-1988-5 | Standard Package | 68 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :WURTH ELEKTRONIK - WR-MM Series | Voltage Rating | 100 V ac |
| Current Rating (Max) | 1A | Insulation Resistance | 1000 MOhms |
Mechanical
| Color | Red | Pitch | 0.100" (2.54mm) |
| Weight | 0.0006 | Packaging | Tube |
| Wire Type | Ribbon Cable | Wire Gauge | 28 AWG |
| Row Spacing | 0.059" (1.50mm) | Termination | IDC |
| Contact Type | Male Pin | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Plug | Contact Finish | Tin |
| Number of Rows | 2 | Contact Material | Phosphor Bronze |
| Housing Material | PBT | Cable Termination | IDC |
| Termination Style | IDC | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 4 | Contact Termination | :IDC / IDT |
| Number of Positions | 4 | ||
Product Info
| Gender | Male | Series | 6901 |
| Features | Feed Through | Product Type | Connectors |
| Application Specifics | Wire-to-Board | ||
Environmental
| Operating Temperature | +105°C | ||
Documents & Media
Similar Parts

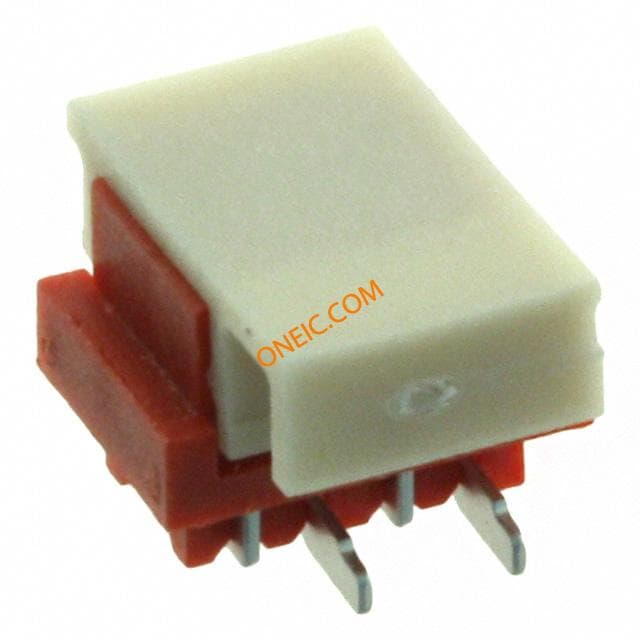

690367280476
Wurth Electronics Inc
CONN 2.54MM SMD FEMALE POLAR 4P Wurth Elektronik 6903 Series 2.54, 1.27mm 4 Way 2 Row Right Angle PCB Socket Surface Mount Board to Board Headers & Wire Housings WR-MM CONN 2.54MM SMD FEMALE POLAR 4P SOCKET, 2.54/1.27MM, SMT, 4WAY Wurth Elektronik 6903 系列 2行 4路 直角 1.27 mm, 2.54 mm节距 表面贴装 印刷电路板插座, 板对板

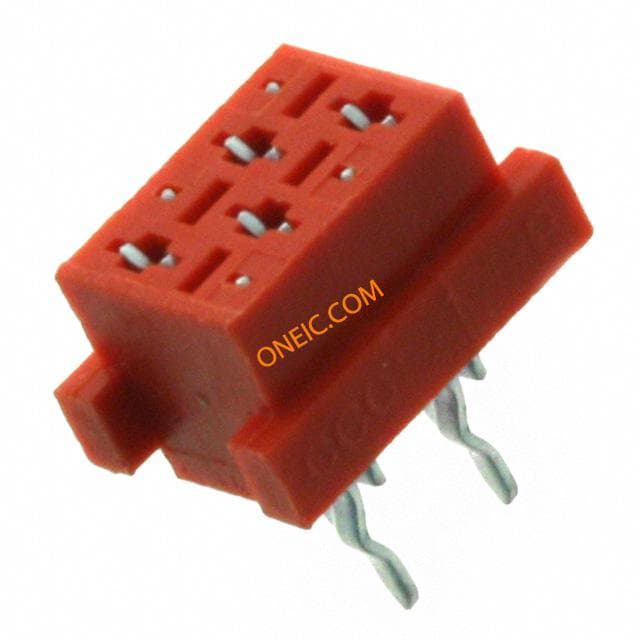

690367180472
Wurth Electronics Inc
CONN 2.54MM FEMALE STR RED 4POS Wurth Elektronik 6903 Series 2.54, 1.27mm 4 Way 2 Row Straight PCB Socket Through Hole Board to Board Headers & Wire Housings WR-MM CONN 2.54MM FEMALE STR RED 4POS SOCKET, 2.54/1.27MM, 4WAY Wurth Elektronik 6903 系列 2行 4路 直 1.27 mm, 2.54 mm节距 通孔 印刷电路板插座, 板对板

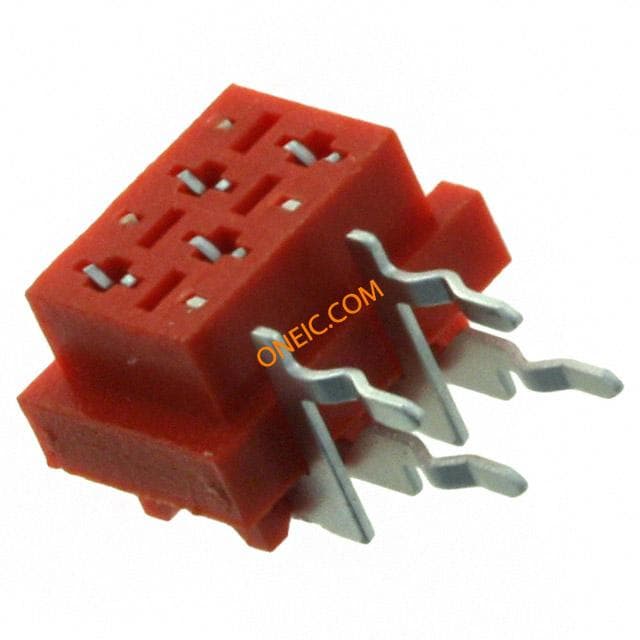

690368170472
