687740200002
| Manufacturer | |
| Description | CONN ZIF .50MM TYPE 2 40P 200MM WR-FFC 0.50mm Cable Type 2 40pin 200mm FFC & FPC Connectors WR-FFC 0.50mm Type 2 40p 200mm CABLE, FFC, REV, 0.5MM, 200MM, 40WAY Wurth Elektronik 6877 系列 200mm FFC 跳线电缆, 0.5mm节距, 0.5 A, 60 V 交流 |
| Category |
Business
| Other Names | 732-3596 | Standard Package | 50 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85444993 | Material Flammability Rating | UL SUB.758 |
Electrical
| Core Type | 1/0.035 mm | Voltage Rating | 60 V ac |
| Conductor Strand | Solid | Current Rating (Max) | 500 mA |
| Number of Conductors | 40 | Insulation Resistance | 1000 MOhms |
Mechanical
| Pitch | 0.020" (0.50mm) | Width | 20.5 mm |
| Length | 7.87" (200mm) | Weight | 0.002 |
| Packaging | Bulk | Cable Type | FFC |
| Cable Group | :FFC, FPC | Cable Length | :7.87" |
| Jacket Color | :White | Mounting Type | Straight |
| Connector Type | :(Not Applicable) | Contact Finish | Tin |
| Contact Material | Copper | Housing Material | Polyethylene Terephthalate (PET) |
| Termination Style | Top on One Side, Bottom on Other, Backers on Both Sides | Color - Connectors | White |
| Number of Contacts | 40 | Length - Exposed Ends | 0.157" (4.00mm) |
| Contact Layout, Typical | Opposite Side Contacts | Number of Cores/Bus Width | 1 |
| Wire Gauge or Range - AWG | 0.035 mm | Number of Positions/Bay/Row | 40 |
Product Info
| Series | WR-FPC | Product Type | Flex Jumpers |
Environmental
| Temperature Range | - 30 C to + 105 C | Operating Temperature | +105°C |
Documents & Media
Similar Parts

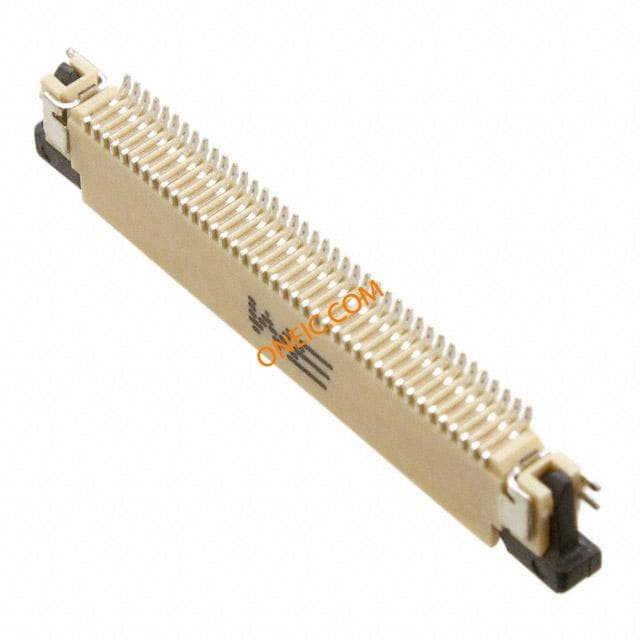

68714014022
Wurth Electronics Inc
CONN ZIF .50MM SMT TOP 40P Wurth Elektronik 687 Series 0.5mm 40 Way 1 Row Straight PCB Socket Surface Mount Wire to Board FFC & FPC Connectors WR-FPC 0.5mm ZIF 40P Horiz Top FFC FPC, TOP, SMT, 0.5MM, R/A, 40WAY Wurth Elektronik 687 系列 0.5mm 节距 40 路 直 SMT FPC 连接器

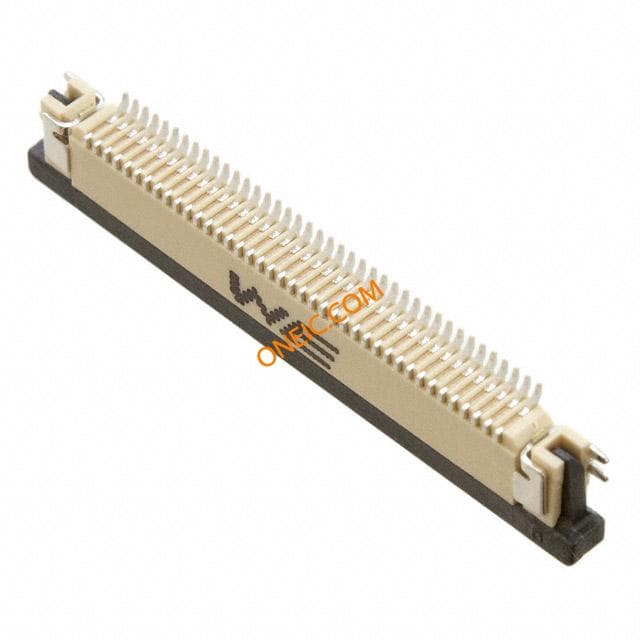

68714014522
