687630050002
| Manufacturer | |
| Description | CONN ZIF .50MM TYPE 1 30P 50MM WR-FFC 0.50mm Cable Type 1 30pin 50mm FFC & FPC Connectors WR-FFC 0.50mm Type 1 30p 50mm CABLE, FFC, 0.5MM, 50MM, 30WAY Wurth Elektronik 6876 系列 50mm FFC 跳线电缆, 0.5mm节距, 500 mA, 60 V 交流 |
| Category |
Business
| Other Names | 732-3569 | Standard Package | 50 |
Compliance
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85444993 | Material Flammability Rating | UL SUB.758 |
Electrical
| Core Type | 1/0.035 mm | Voltage Rating | 60 V ac |
| Conductor Strand | Solid | Current Rating (Max) | 500 mA |
| Number of Conductors | 30 | Insulation Resistance | 1000 MOhms |
Mechanical
| Pitch | 0.020" (0.50mm) | Width | 15.5 mm |
| Length | 1.97" (50.00mm) | Weight | 0.002 |
| Packaging | Bulk | Cable Type | FFC |
| Cable Group | :FFC, FPC | Cable Length | :1.97" |
| Jacket Color | :White | Mounting Type | Straight |
| Connector Type | :- | Contact Finish | Tin |
| Contact Material | Copper | Housing Material | Polyethylene Terephthalate (PET) |
| Termination Style | Top on Both Sides, Backers Both Sides | Color - Connectors | White |
| Number of Contacts | 30 | Length - Exposed Ends | 0.157" (4.00mm) |
| Contact Layout, Typical | Same Side Contacts | Number of Cores/Bus Width | 1 |
| Wire Gauge or Range - AWG | 0.035 mm | Number of Positions/Bay/Row | 30 |
Product Info
| Series | WR-FPC | Product Type | Flex Jumpers |
Environmental
| Temperature Range | - 30 C to + 85 C | Operating Temperature | +105°C |
Documents & Media
Similar Parts

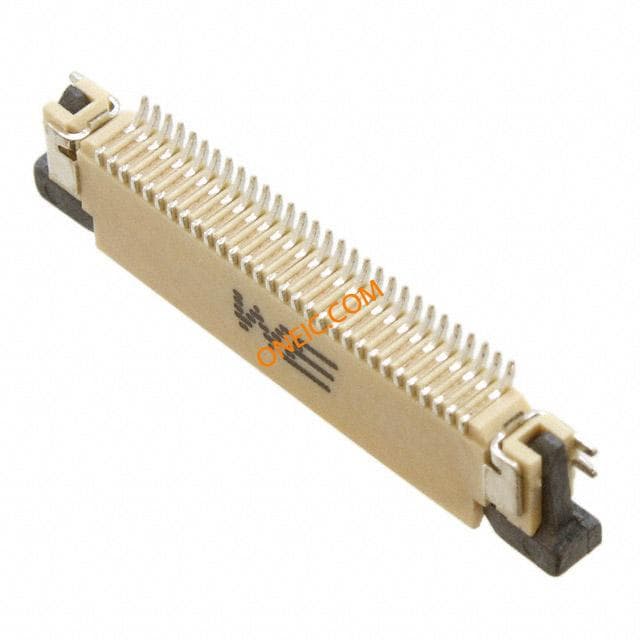

68713014022
Wurth Electronics Inc
CONN ZIF .50SMT TOP 30P Wurth Elektronik 687 Series 0.5mm 30 Way 1 Row Straight PCB Socket Surface Mount Wire to Board FFC & FPC Connectors WR-FPC 0.5mm ZIF 30P Horiz Top FFC FPC, TOP, SMT, 0.5MM, R/A, 30WAY Wurth Elektronik 687 系列 0.5mm 节距 30 路 直 SMT FPC 连接器

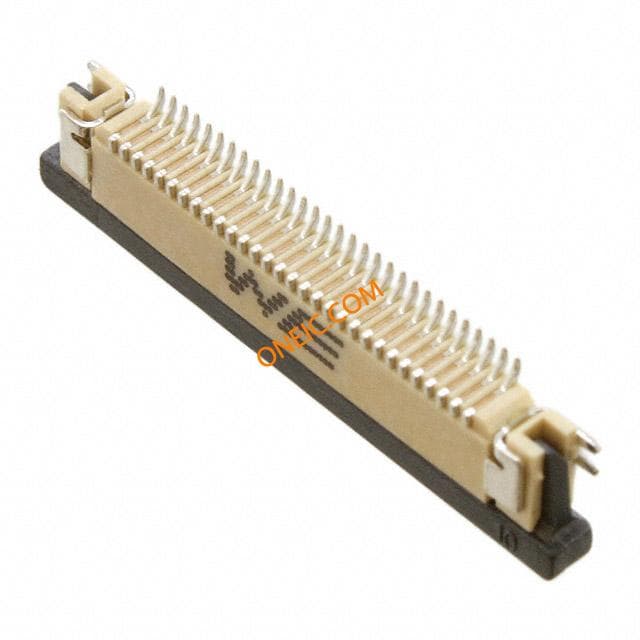

68713014522
Wurth Electronics Inc
CONN ZIF .50MM SMT BOTTOM 30P Wurth Elektronik 687 Series 0.5mm 30 Way 1 Row Straight PCB Socket Surface Mount Wire to Board FFC & FPC Connectors WR-FPC 0.5mm ZIF 30P Horiz Bottom FFC FPC, BTM, SMT, 0.5MM, R/A, 30WAY Wurth Elektronik 687 系列 0.5mm 节距 30 路 直 SMT FPC 连接器

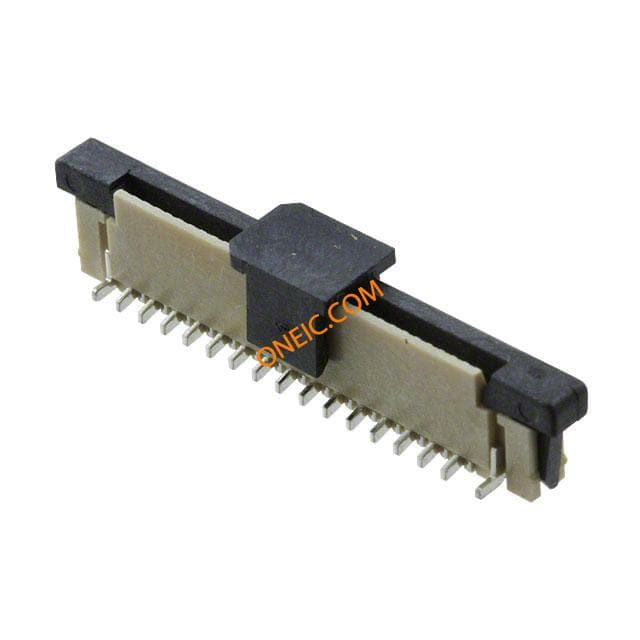

687330124422
