68710814022
| Manufacturer | |
| Description | CONN ZIF 0.5MM HORZ TOP SMD 8POS Wurth Elektronik 687 Series 0.5mm 8 Way 1 Row Straight PCB Socket Surface Mount Wire to Board FFC & FPC Connectors WR-FPC 0.5mm ZIF 8P Top Contact FFC, 0.5MM, R/A, TOP, ZIIF, 8WAY Wurth Elektronik 687 系列 0.5mm 节距 8 路 直 SMT FPC 连接器 |
| Category |
Business
| Other Names | 732-2019-2 | Standard Package | 2,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 50V | Current Rating (Max) | 0.5A |
| Insulation Resistance | 100 MOhms | ||
Mechanical
| Pitch | 0.020" (0.50mm) | Weight | 0.9 |
| Packaging | Tape & Reel (TR) | Termination | Solder |
| Lead Spacing | :0.5mm | Mounting Type | Surface Mount, Right Angle |
| Cable End Type | Tapered | Connector Type | Top Contacts |
| Contact Finish | Tin | Number of Rows | 1 |
| Locking Feature | Flip Lock | Contact Material | Phosphor Bronze |
| Contact Position | :Top | Housing Material | Liquid Crystal Polymer (LCP) |
| Termination Style | SMD | FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) | Number of Contacts | 8 |
| Contact Termination | :Surface Mount Right Angle | Number of Positions | 8 |
| Contact Layout, Typical | Top Contact | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Wire to Board | Gender | :Plug |
| Series | 687 | Features | Zero Insertion Force (ZIF) |
| Product Type | Board Mount | ||
Environmental
| Temperature Range | - 25 C to + 85 C | Operating Temperature | -25°C ~ 85°C |
Documents & Media
Similar Parts

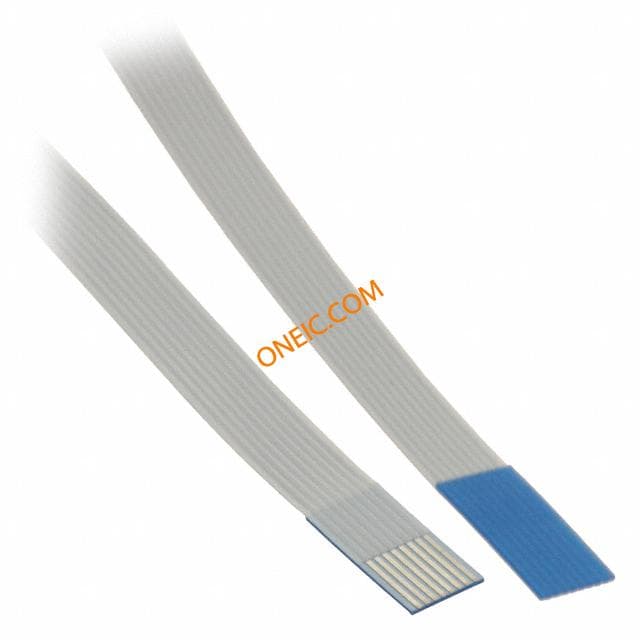

687708200002
Wurth Electronics Inc
CONN ZIF .50MM TYPE 2 8P 200MM WR-FFC 0.50mm Cable Type 2 8pin 200mm FFC / FPC Jumper Cables WR-FFC 0.50mm Type 2 8p 200mm CABLE, FFC, REV, 0.5MM, 200MM, 8WAY Wurth Elektronik 6877 系列 200mm FFC 跳线电缆, 0.5mm节距, 500 mA, 60 V 交流

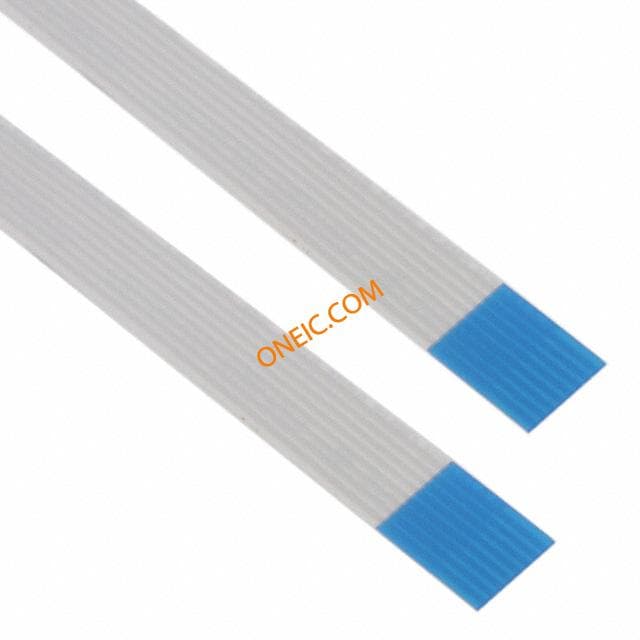

687608200002
