68612614122
| Manufacturer | |
| Description | CONN ZIF 1.00MM SMT TOP 26P Wurth Elektronik 686 Series 1mm 26 Way 1 Row Straight PCB Socket Surface Mount Wire to Board FFC FPC, TOP, SMT, 1MM, R/A, 26WAY Wurth Elektronik 686 系列 1mm 节距 26 路 直 SMT FPC 连接器 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 732-3511-2 | Standard Package | 1,500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Voltage Rating | 125V | Current Rating (Max) | 1A |
Mechanical
| Pitch | 0.039" (1.00mm) | Weight | 0.001 |
| Packaging | Tape & Reel (TR) | Termination | Solder |
| Mounting Type | Surface Mount, Right Angle | Cable End Type | Tapered |
| Connector Type | Top Contacts | Contact Finish | Tin |
| Number of Rows | 1 | Locking Feature | Slide Lock |
| Contact Material | Phosphor Bronze | Contact Position | :Top |
| Housing Material | Polyphenylene Sulfide (PPS) | FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.116" (2.95mm) | Number of Contacts | 26 |
| Contact Termination | :Surface Mount Right Angle | Number of Positions | 26 |
| Contact Finish Thickness | 100µin (2.54µm) | ||
Product Info
| Type | Wire to Board | Gender | :Socket |
| Series | 686 | Features | Solder Retention, Zero Insertion Force (ZIF) |
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
Documents & Media
PDF Document
Similar Parts

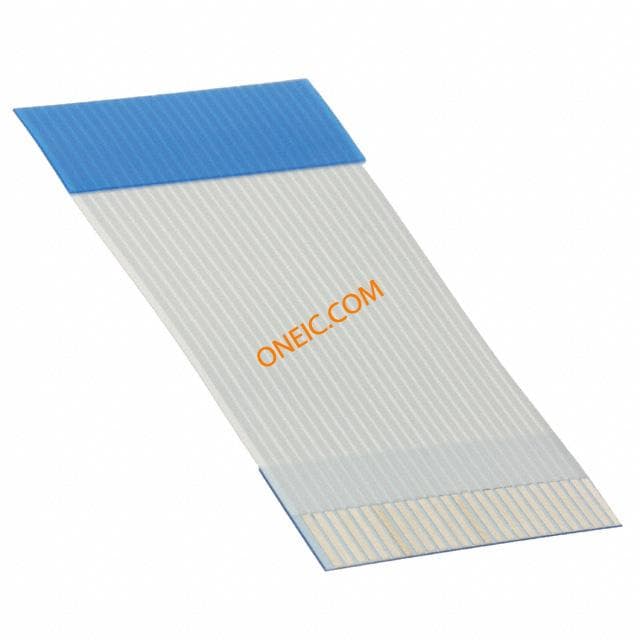

686726050001
Wurth Electronics Inc
CONN ZIF 1.00MM TYPE 2 26P 50MM WR-FFC 1.00mm Cable Type 2 26pin 50mm CABLE, FFC, REV, 1MM, 50MM, 26WAY Wurth Elektronik 6867 系列 50mm FFC 跳线电缆, 1mm节距, 1 A, 60 V 交流
$15.9800
Details

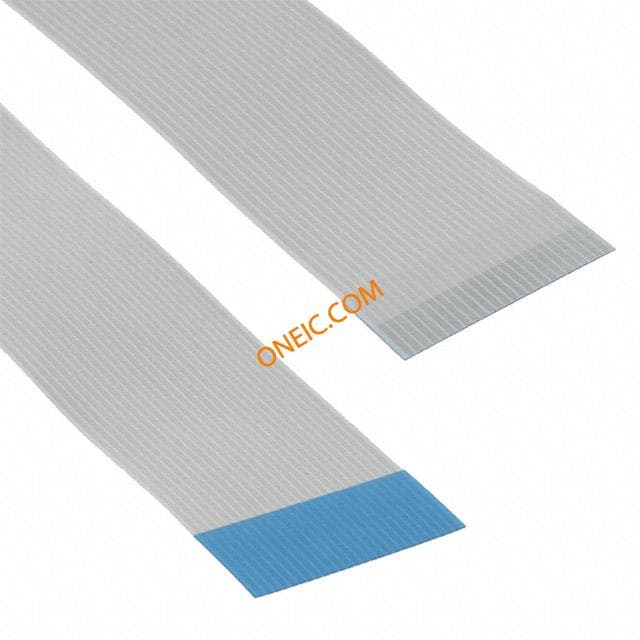

686726200001
Wurth Electronics Inc
CONN ZIF 1.00MM TYPE 2 26P 200MM WR-FFC 1.00mm Cable Type 2 26pin 200mm CABLE, FFC, REV, 1MM, 200MM, 26WAY Wurth Elektronik 6867 系列 200mm FFC 跳线电缆, 1mm节距, 1 A, 60 V 交流
$18.9098
Details

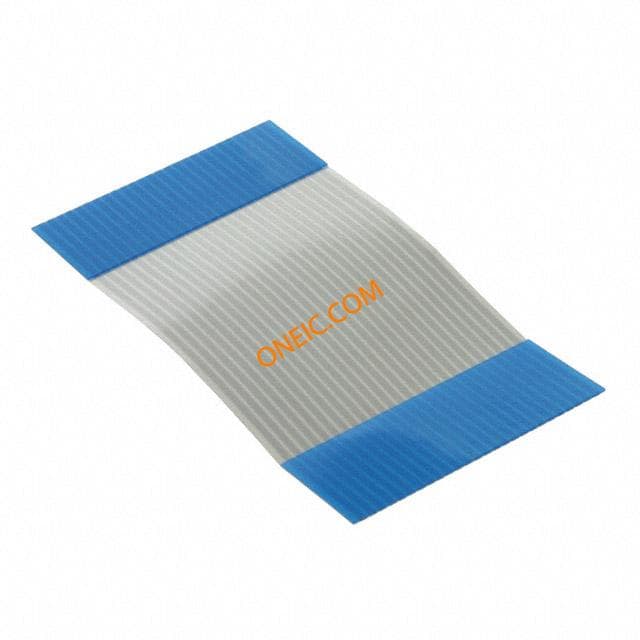

686626050001
Wurth Electronics Inc
CONN ZIF 1.00MM TYPE 1 26P 50MM WR-FFC 1.00mm Cable Type 1 26pin 50mm CABLE, FFC, 1MM, 50MM, 26WAY Wurth Elektronik 6866 系列 50mm FFC 跳线电缆, 1mm节距, 1 A, 60 V 交流
$9.0600
Details

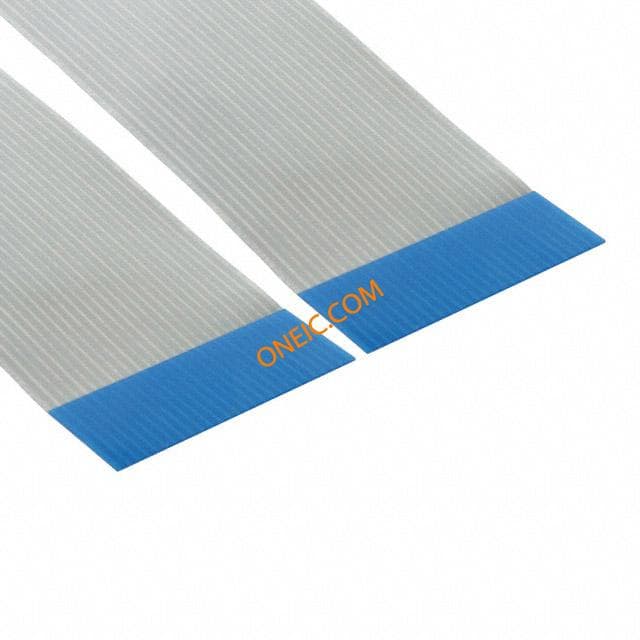

686626200001
Wurth Electronics Inc
CONN ZIF 1.00MM TYPE 1 26P 200MM WR-FFC 1.00mm Cable Type 1 26pin 200mm CABLE, FFC, 1MM, 200MM, 26WAY Wurth Elektronik 6866 系列 200mm FFC 跳线电缆, 1mm节距, 1 A, 60 V 交流
$18.9098
Details
