点击放大查看
68611014422
| Manufacturer | |
| Description | CONN ZIF 1MM HORZ BOTTOM SMD 10P Wurth Elektronik 686 Series 1mm 10 Way 1 Row Straight PCB Socket Surface Mount Wire to Board FFC, 1MM, R/A, BOTTOM, ZIIF, 10WAY Wurth Elektronik 686 系列 1mm 节距 10 路 直 SMT FPC 连接器 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 732-1996-2 | Standard Package | 1,500 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | ||
Electrical
| Voltage Rating | 125V | Current Rating (Max) | 1A |
Mechanical
| Pitch | 0.039" (1.00mm) | Weight | 0.0006 |
| Packaging | Tape & Reel (TR) | Termination | Solder |
| Lead Spacing | :1mm | Mounting Type | Surface Mount, Right Angle |
| Cable End Type | Tapered | Connector Type | Bottom Contacts |
| Contact Finish | Tin | Number of Rows | 1 |
| Locking Feature | Slide Lock | Contact Material | Phosphor Bronze |
| Contact Position | :Bottom | Housing Material | Polyphenylene Sulfide (PPS) |
| FFC, FCB Thickness | 0.30mm | Height Above Board | 0.118" (3.00mm) |
| Number of Contacts | 10 | Contact Termination | :Surface Mount Right Angle |
| Number of Positions | 10 | Contact Finish Thickness | 100µin (2.54µm) |
Product Info
| Type | Wire to Board | Gender | :Plug |
| Series | 686 | Features | Solder Retention, Zero Insertion Force (ZIF) |
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
Documents & Media
Online Document
Online Document
Online Document
PDF Document
PDF Document
PDF Document
Similar Parts

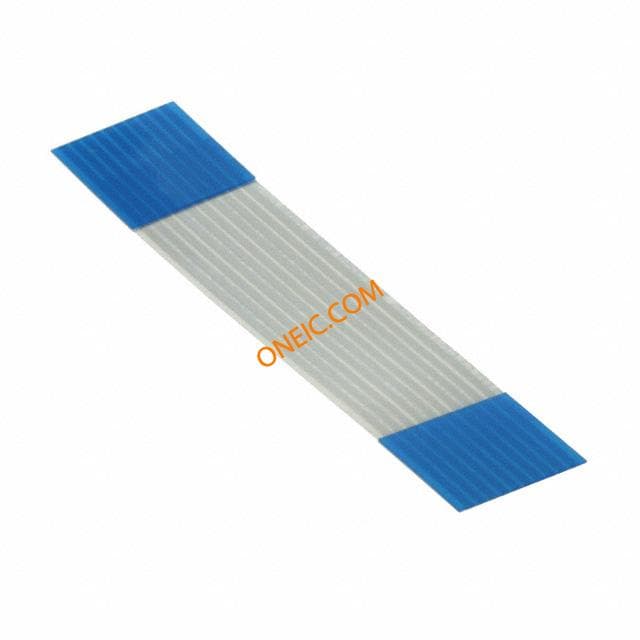

686610050001
Wurth Electronics Inc
CONN ZIF 1.00MM TYPE 1 10P 50MM WR-FFC 1.00mm Cable Type 1 10pin 50mm CABLE, FFC, 1MM, 50MM, 10WAY Wurth Elektronik 6866 系列 50mm FFC 跳线电缆, 1mm节距, 1 A, 60 V 交流
$9.0600
Details

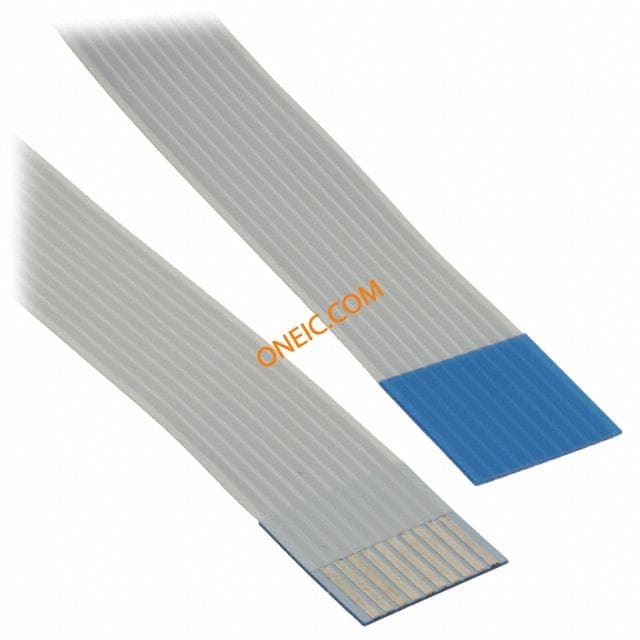

686710200001
