点击放大查看

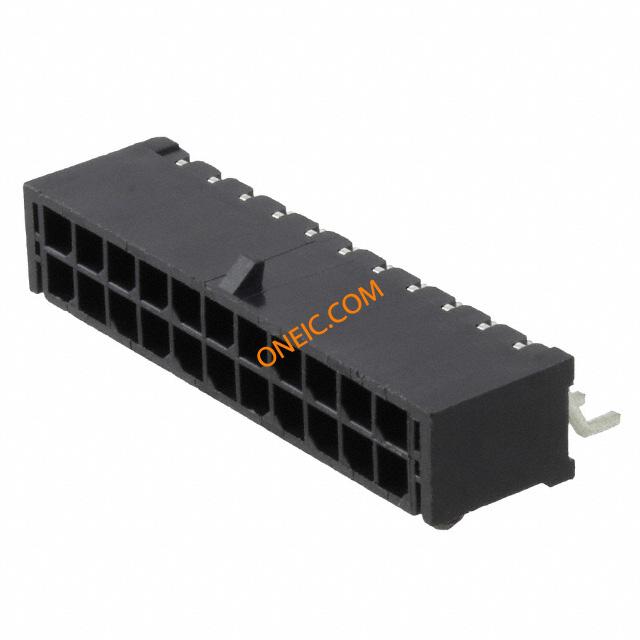

662018235922
| Manufacturer | |
| Description | WR-MPC3 MICRO POWER CONNECTOR HEADER, 3.0MM, DUAL ROW, CLIP, 18WAY WR-MPC3 POWER CONNECTOR 18POS |
| Category |
Business
| Other Names | 732-4802-5 | Standard Package | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | ||
Mechanical
| Color | Black | Pitch | 0.118" (3.00mm) |
| Weight | 0.0288 | Packaging | Tube |
| Row Spacing | 0.118" (3.00mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Surface Mount |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Contact Material | :Copper | 1st Contact Gender | :Pin |
| Number of Contacts | :18 | Contact Termination | :Surface Mount Vertical |
| Number of Positions | 18 | Shell Size - Insert | :- |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Gender | :Header | Series | :WR-MPC3 |
| Features | Board Lock | Number of Positions Loaded | All |
