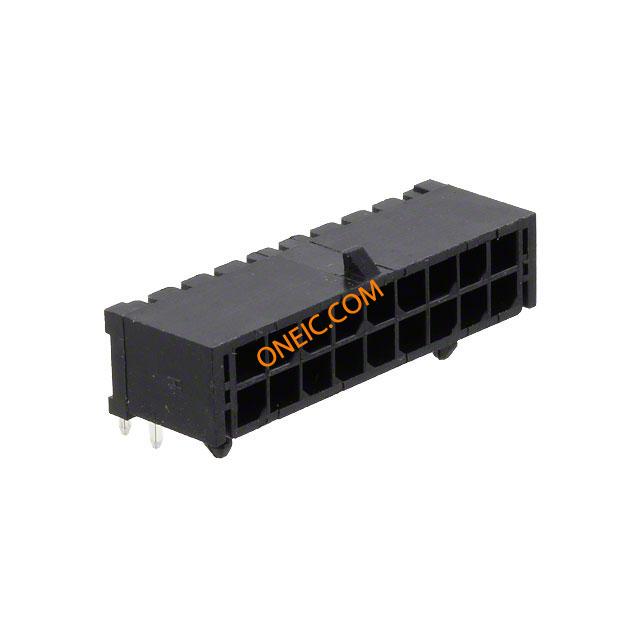

66201821022
| Manufacturer | |
| Description | WR-MPC3 MICRO POWER CONNECTOR HEADER, 3MM,DUAL ROW R/A, PEGS,18WAY WR-MPC3 POWER CONNECTOR 18POS Wurth Elektronik WR-MPC3 系列 3mm节距 18路 (2排) 直角 PCB 针座, 焊接端接, 5A , 通孔 |
| Category |
Business
| Other Names | 732-4735-5 | Standard Package | 20 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | ||
Mechanical
| Color | Black | Pitch | 0.118" (3.00mm) |
| Weight | 0.0264 | Packaging | Tube |
| Row Spacing | 0.118" (3.00mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole, Right Angle |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Latch Lock | Number of Rows | 2 |
| Contact Material | :Copper | 1st Contact Gender | :Pin |
| Number of Contacts | :18 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | 18 | Shell Size - Insert | :- |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Gender | :Header | Series | :WR-MPC3 |
| Features | Board Guide | Number of Positions Loaded | All |
Documents & Media
Similar Parts
600003
Wurth Electronics Inc
WR-WTB TOOL CRIMP WTB SERIES TOOL, CRIMP, WITHOUT DIE Wurth Elektronik 压接工具
600662324200
Wurth Electronics Inc
WR-MPC3 DIE SET FOR 600003 TOOL, DIE, WR-MPC3, USE WITH 600003 Wurth Elektronik 6006 系列 压接工具模具 , 20 AWG, 24 → 22 AWG 线规格
662200124015
Wurth Electronics Inc
WR-MPC3 3,00 MM PRE-CRIMPED CONT CRIMP LEAD, PIN, 3MM, 20-24AWG, 150MM Wurth Elektronik WR-MPC4 系列 公 预压接电线, 压接
662262220030
Wurth Electronics Inc
WR-MPC3 3,00 MM PRE-CRIMPED CONT CRIMP LEAD, PIN, 3MM, 20-24AWG, 300MM Wurth Elektronik WR-MPC4 系列 公 预压接电线, 压接

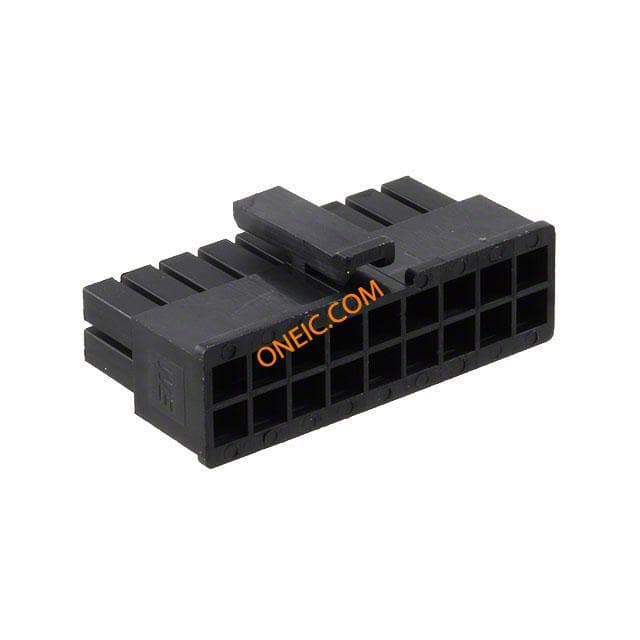

662018113322
