点击放大查看

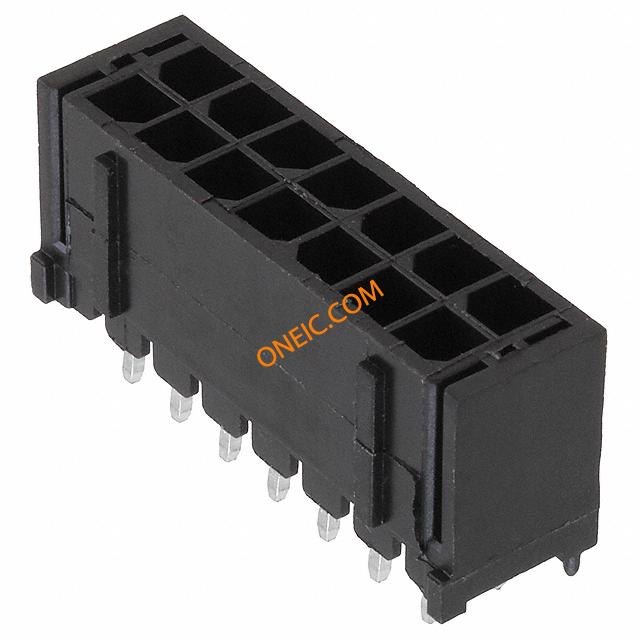

66201421122
| Manufacturer | |
| Description | WR-MPC3 MICRO POWER CONNECTOR HEADER, 3.0MM, DUAL ROW, 14WAY WR-MPC3 POWER CONNECTOR 14POS Wurth Elektronik WR-MPC3 系列 3mm节距 14路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔 |
| Category |
Business
| Other Names | 732-4730-5 | Standard Package | 24 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366930 | ||
Mechanical
| Color | Black | Pitch | 0.118" (3.00mm) |
| Weight | 0.0193 | Packaging | Tray |
| Row Spacing | 0.118" (3.00mm) | Termination | Kinked Pin, Solder |
| Contact Type | Male Pin | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Contact Material | :Copper | 1st Contact Gender | :Pin |
| Number of Contacts | :14 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 14 | Shell Size - Insert | :- |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Gender | :Header | Series | :WR-MPC3 |
| Features | Board Guide | Number of Positions Loaded | All |
