662004231822
| Manufacturer | |

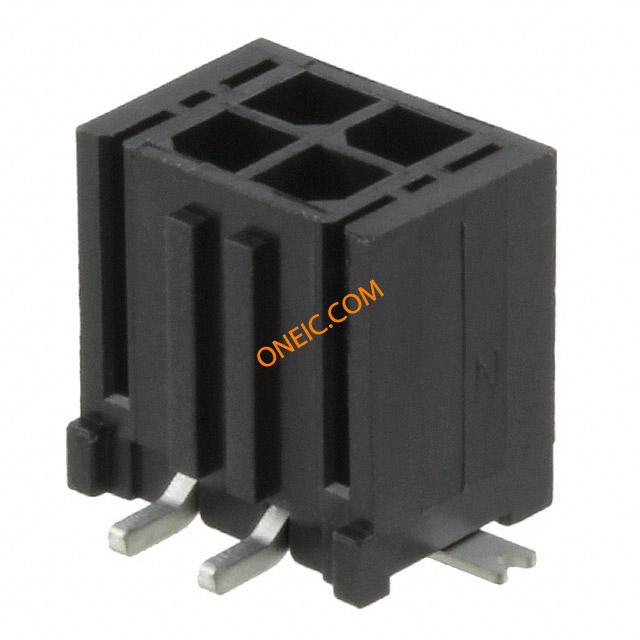

| Description | WR-MPC3 MICRO POWER CONNECTOR HEADER, 3MM, DUAL, VERT, SMT, 4WAY WR-MPC3 POWER CONNECTOR 4POS Wurth Elektronik WR-MPC3 系列 3mm节距 4路 (2排) 直 PCB 针座, 焊接端接, 5A , 通孔 |
| Category |
Business
| Other Names | 732-4904 | Standard Package | 120 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85366990 | ||
Electrical
| Range deg/s | :WURTH ELEKTRONIK - WR-MPC3 Series | ||
Mechanical
| Color | Black | Pitch | 0.118" (3.00mm) |
| Weight | 0.0017 | Packaging | Tray |
| Row Spacing | 0.118" (3.00mm) | Termination | Solder |
| Contact Type | Male Pin | Mounting Type | Surface Mount |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Locking Ramp | Number of Rows | 2 |
| Contact Material | :Copper | Number of Contacts | :4 |
| Contact Termination | :Surface Mount Vertical | Number of Positions | 4 |
Product Info
| Gender | :Socket | Features | Solder Retention |
| Number of Positions Loaded | All | ||
